Explosion-Proof Pumps in Hazardous Industrial Environments: Choosing the Right Pump for Safety and Reliability
Industrial facilities operating in hazardous environments face unique pumping challenges. Whether handling flammable liquids, explosive gases, abrasive slurries, or corrosive wastewater, selecting the right pump is critical, not only for operational efficiency but also for worker safety and regulatory compliance.
Explosion-proof submersible pumps are specifically engineered for these demanding conditions, providing reliable performance while minimizing the risk of ignition in hazardous locations.
What Is an Explosion-Proof Pump?
Explosion-proof submersible pumps are designed to operate safely in environments where combustible gases, vapors, or flammable liquids may be present. Unlike standard pumps, these units feature sealed, spark-resistant motors and engineered flame paths that contain any internal ignition, preventing it from reaching the surrounding atmosphere.
Industrial Flow Solutions™ offers explosion-proof pumps that are MSHA-certified and available with FM-approved motors suitable for Class I, Division 1, Groups C & D hazardous locations, helping facilities meet strict safety and regulatory requirements.
Why Explosion-Proof Pumps Matter
Hazardous industrial environments demand equipment that can perform continuously while reducing operational risk. A properly specified explosion-proof pump helps facilities:
- Protect personnel working in hazardous locations
- Reduce the risk of fires and explosions
- Maintain compliance with OSHA, NFPA, NEC, and EPA regulations
- Improve equipment reliability during 24/7 operation
- Reduce costly downtime and maintenance
These benefits make explosion-proof pumps an essential component of safe industrial operations.
Common Applications
Explosion-proof pumps are used anywhere in hazardous atmospheres or combustible materials exist. Typical applications include:
- Mining and mineral processing
- Power generation facilities
- Oil and gas operations
- Chemical processing plants
- Wastewater treatment
- Industrial manufacturing
- Marine and dredging operations
- Construction dewatering
Many of these applications also require pumps capable of handling abrasive solids, sludge, or slurries under harsh conditions.
Handling Sand, Sludge, and Slurry
Not every hazardous application involves clean water. Many industrial facilities must pump abrasive mixtures containing sand, sludge, coal fines, metal particles, or other suspended solids.
Slurry pumps are specifically engineered to withstand constant wear from abrasive materials through hardened components, high-chrome construction, and heavy-duty seal systems.
Typical slurry pump applications include:
- Mining operations
- Aggregate processing
- Dredging
- Power plant ash handling
- Wastewater treatment
- Paper mills
- Beach restoration
- Construction sites

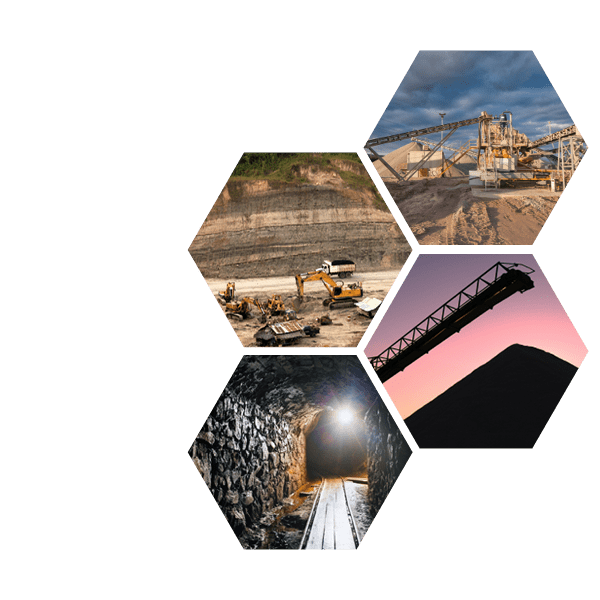

Explosion-Proof Pumps for Mining
Few industries are tougher on pumping equipment than mining. Pumps are exposed to abrasive slurry, acidic water, high temperatures, continuous operation, and potentially explosive environments.
Mining operations often require pumps that deliver:
- High-flow dewatering
- Abrasion-resistant solids handling
- Corrosion resistance
- Continuous-duty performance
- MSHA-certified explosion protection
For these demanding applications, the BJM Pumps® XP-KZN Series combines explosion-proof construction with heavy-duty slurry handling. Its high-chrome agitator, abrasion-resistant hydraulic components, Seal Minder® moisture detection system, and Class H insulated motor make it well suited for harsh mining environments where uptime is critical.
Power Generation Requires Reliable Pumping Solutions
Power plants rely on pumps throughout their operations to move wastewater, fuel sludge, cooling water, and abrasive process fluids. Equipment failures can impact production, increase maintenance costs, and create significant safety risks.
Explosion-proof and dewatering pumps help facilities safely manage:
- Fuel sludge
- Wastewater
- Abrasive slurries
- High-temperature process fluids
- Confined hazardous locations
Industrial Flow Solutions provides pumping solutions designed for thermal, hydroelectric, and nuclear facilities that require continuous operation and strict compliance with environmental and safety regulations.
Featured Explosion Proof Pump Solutions

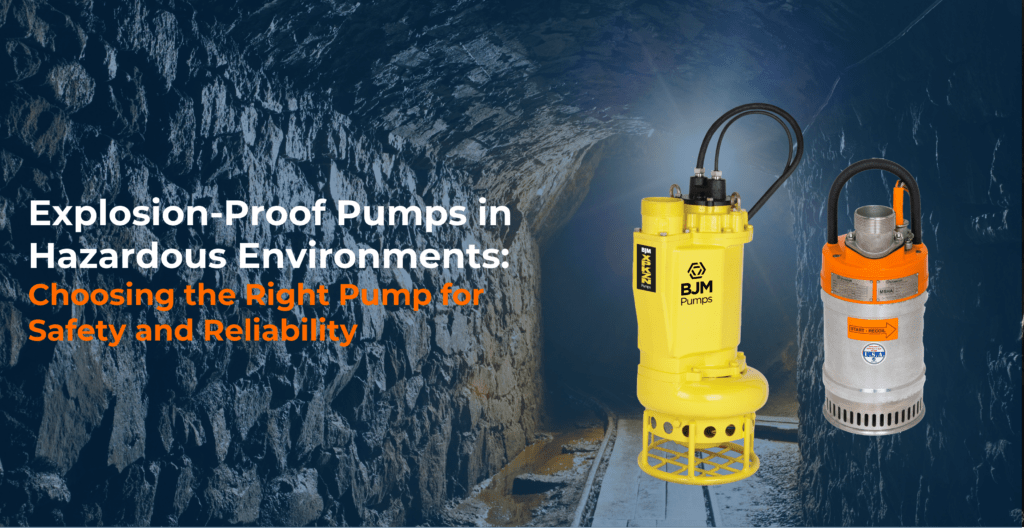

BJM Pumps XP-KZN Series
The XP-KZN Series is designed specifically for abrasive solids-handling applications in hazardous environments.
Key features include:
- FM-approved explosion-proof motor
- Meets NFPA, NEC, and OSHA requirements for Class I, Division 1, Groups C & D
- Heavy-duty high-chrome agitator for slurry applications
- Abrasion-resistant ductile iron construction
- Double silicon carbide mechanical seals
- Seal Minder® moisture detection system
- Class H motor insulation
- Available from 5–10 HP
The XP-KZN is an ideal choice for mining, industrial processing, wastewater, and other applications requiring both explosion protection and abrasion resistance.
Stancor P/S MSHA Series
The Stancor P/S MSHA Series is a heavy-duty explosion-proof dewatering pump designed for demanding industrial environments.
Key features include:
- MSHA-rated explosion-proof design
- Cast 356-T6 aluminum construction
- Stainless steel impeller and hardware
- High-chrome versions available for severe wear applications
- Tandem mechanical seals
- Built-in thermal protection
- Class F motor insulation
- Available from 1.5–75 HP
Its rugged construction makes it an excellent solution for mining, construction dewatering, power generation, and other high-demand applications.
Selecting the Right Explosion-Proof Pump
Choosing the best pump starts with understanding the application. Consider:
- Is the environment classified as hazardous?
- Will the pump handle slurry, sludge, or abrasive solids?
- What flow and head requirements are needed?
- Will the pump operate continuously?
- Are corrosion resistance or high-temperature capabilities required?
- Which certifications are necessary for regulatory compliance?
Answering these questions helps ensure reliable performance, longer equipment life, and safer operation.
Built for Safety. Designed for Reliability.
Explosion-proof pumps are more than a regulatory requirement; they are a critical investment in plant safety, equipment reliability, and operational uptime.
Whether your facility requires heavy-duty dewatering, abrasive slurry handling, or explosion-proof pumping for hazardous environments, Industrial Flow Solutions offers engineered solutions for the toughest industrial applications.
From the abrasion-resistant BJM Pumps XP-KZN Series to the heavy-duty Stancor P/S MSHA Series, our portfolio provides dependable pumping solutions that keep industrial operations running safely, efficiently, and continuously.
Frequently Asked Questions About Explosion-Proof Pumps
What is an explosion-proof pump?
An explosion-proof pump is specifically designed to operate safely in hazardous locations where flammable gases, vapors, or combustible liquids may be present. These pumps feature sealed motors and engineered flame paths that contain any internal sparks or ignition, preventing them from igniting the surrounding atmosphere. They are commonly used in mining, power generation, oil and gas, chemical processing, and industrial wastewater applications.
What industries commonly use explosion-proof submersible pumps?
Explosion-proof submersible pumps are used in industries where hazardous conditions are part of normal operations, including:
- Mining and mineral processing
- Power generation facilities
- Oil and gas operations
- Chemical manufacturing
- Wastewater treatment plants
- Industrial manufacturing
- Marine and dredging projects
- Construction dewatering
What certifications should I look for in an explosion-proof pump?
The required certification depends on your application and facility classification. Many hazardous industrial applications require pumps that meet MSHA, FM, NFPA, NEC, and OSHA standards. Pumps certified for Class I, Division 1, Groups C & D hazardous locations are designed for environments where explosive gases or vapors may be present during normal operation.
Can explosion-proof pumps handle abrasive slurry and sludge?
Yes. Many explosion-proof pumps are specifically engineered for abrasive applications. For example, pumps with high-chrome agitators, hardened wear components, abrasion-resistant impellers, and double mechanical seals are designed to handle sand, sludge, slurry, and other abrasive mixtures while operating safely in hazardous environments.
Can explosion-proof pumps operate continuously?
Yes. Many industrial explosion-proof pumps are designed for continuous-duty operation in demanding environments. Features such as heavy-duty bearings, thermal protection, high-quality mechanical seals, and Class F or Class H motor insulation help ensure reliable 24/7 performance.
How do I choose the right explosion-proof pump?
Selecting the correct pump depends on several factors, including:
- The hazardous area classification
- Fluid type and solids content
- Flow rate and head requirements
- Fluid temperature
- Abrasiveness and corrosiveness of the media
- Duty cycle (continuous or intermittent)
- Required industry certifications
Working with an experienced pump manufacturer or application engineer can help ensure the selected pump meets both performance requirements and applicable safety regulations. Contact our applications team to learn about a solution for your explosion pump needs: [email protected]
