HAZ Series

  • Abrasion-resistant solids-handling pump
  • Available as MSHA Part 7 (pump only) or MSHA Part 18 (pump with controls)
  • Designed and constructed for abrasive coal slurries
  • High-chrome iron semi-open impeller (28%), wear plate and agitator
  • Hardened ductile iron volute.
  • Built-in thermal overload protection
  • Built-in agitator mixes settled solids with pump water to restore sump or basin volume.
  • Class H motor insulation
  • 4 pole motor
  • 3-phase voltages
  • 5HP – 10HP

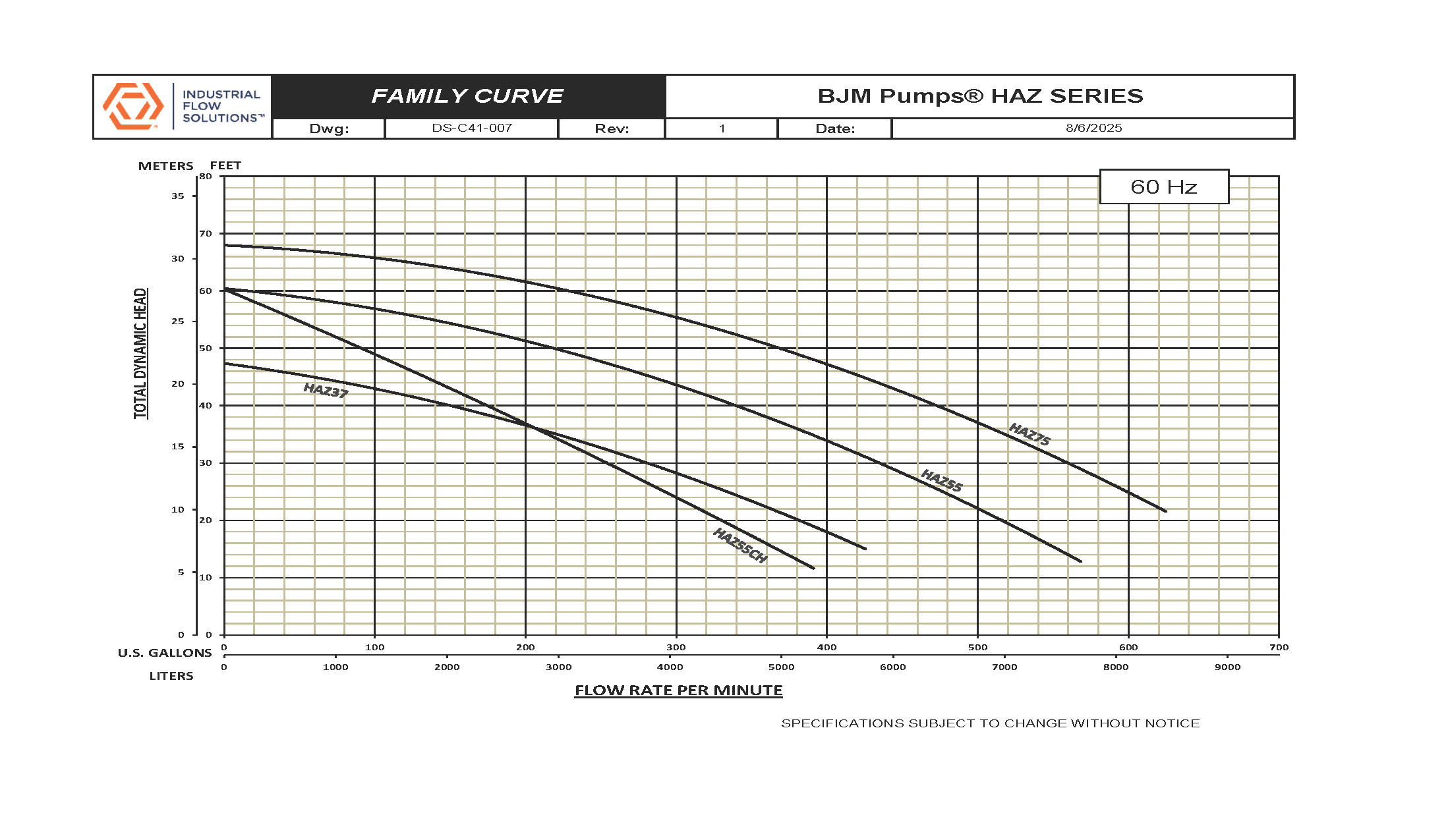

ModelDatasheet & CurvesMotor RatingVoltagePhase FrequencyFull Load AmpsDischargeWeightMax HeadMax FlowMax Solids
HAZ375hp230/460/5753ph-60Hz17/8.5/6.83" NPT-MALE425 lbs42'475 GPM0.875"
HAZ557.5hp230/460/5753ph-60Hz19.5/9.5/7.84" NPT-MALE435 lbs57'594 GPM1"
HAZ55CH7.5hp230/460/5753ph-60Hz19.5/9.5/7.83" NPT-MALE435 lbs69'449 GPM1"
HAZ7510hp460/5753ph-60Hz13/10.54" NPT-MALE445 lbs61'655 GPM1"
