KBF Series

  • Fahrenheit® High temperature slurry pump
  • HIGH TEMPERATURE up to up to 200°F (93°C)
  • Abrasive resistant chrome iron components
  • Heads to 170’
  • Built-in agitator
  • Built in thermal protection
  • Double mechanical seals – SiC/SiC lower and carbon ceramic
  • Top discharge
  • Jacketed pumps cooled by pumped liquid
  • Narrow – <13.5” diameter
  • Class H motor insulation
  • 2 pole motor design
  • 7.5 HP – 15 HP

Literature

Dimensions
Parts Lists/Exploded Views
Operation Manual

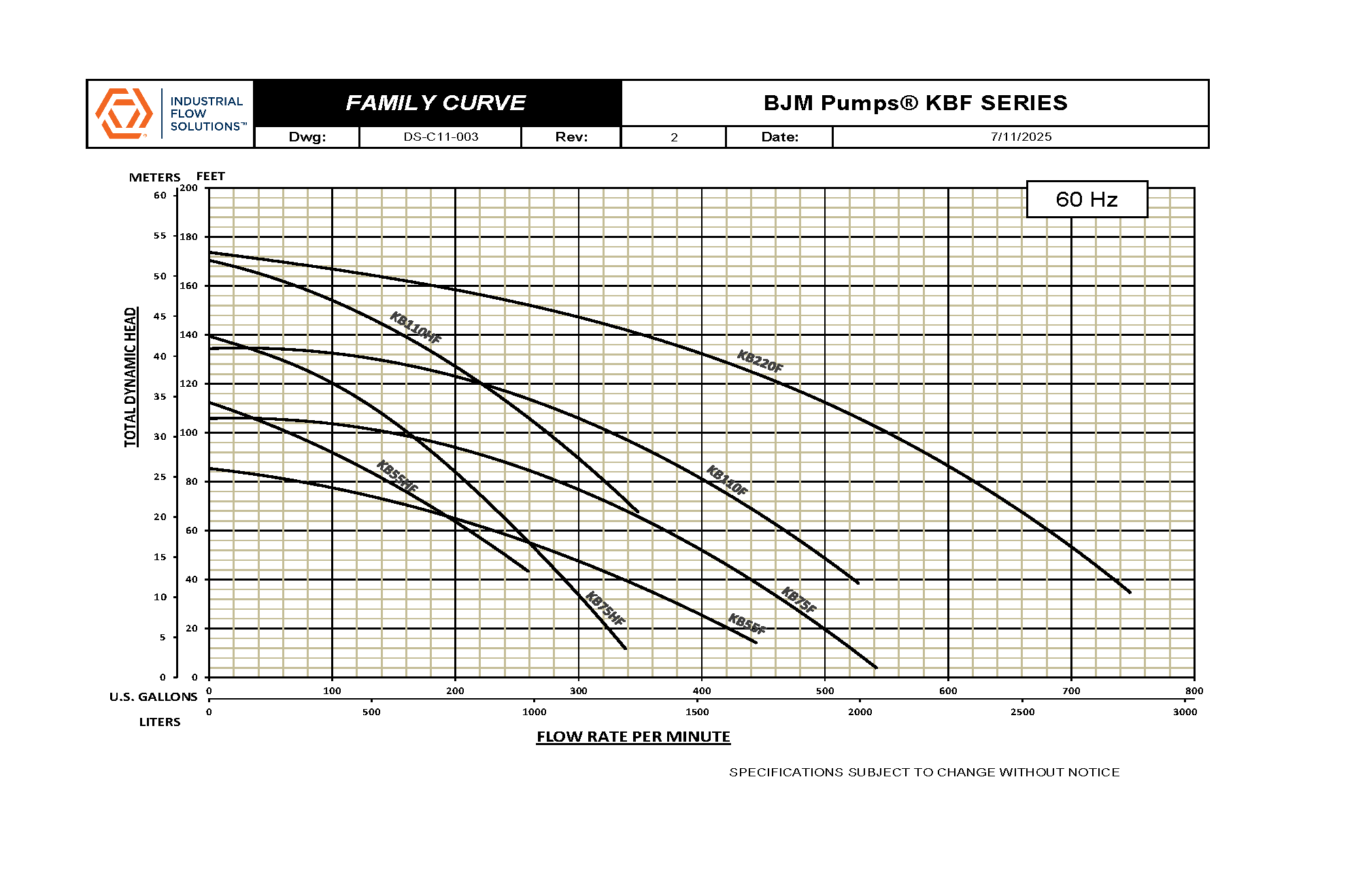

ModelDatasheet & CurvesMotor RatingVoltagePhase FrequencyFull Load AmpsDischargeWeightMax HeadMax FlowMax Solids
KB55F Download IFS-BJM-KB55F-datasheet.pdf 7.5hp230/460/5753ph-60Hz20.4/9.9/7.64" NPT-M375 lbs91'501 GPM0.39"
KB55HF Download IFS-BJM-KB55HF-datasheet.pdf 7.5hp230/460/5753ph-60Hz20.4/9.9/7.63" NPT-M375 lbs117'277 GPM0.39"
KB75F Download IFS-BJM-KB75F-datasheet.pdf 10hp460/5753ph-60Hz13.6/10.56" NPT-M375 lbs111'650 GPM0.39"
KB75HF Download IFS-BJM-KB75HF-datasheet.pdf 10hp460/5753ph-60Hz13.6/10.54" NPT-M375 lbs141'400 GPM0.39"
KB110F Download IFS-BJM-KB110F-datasheet.pdf 15hp460/5753ph-60Hz18.7/13.76" NPT-M430 lbs138'551 GPM0.39"
KB110HF15hp460/5753ph-60Hz18.7/13.74" NPT-M430 lbs170'356 GPM0.39"
KB220F Download IFS-BJM-KB220F-datasheet.pdf 30hp460/5753ph-60Hz32/25.66" NPT-M613 lbs186'810 GPM1"
