KZN Series

  • Abrasion-resistant, solids-handling pump
  • Heavy duty, high-chrome agitator for sand/ sludge/ slurry applications
  • Double silicon carbide mechanical seal• Abrasion-resistant solids-handling pump
  • Heavy duty, high-chrome agitator for sand/ sludge/ slurry applications
  • Double silicon carbide mechanical sealAbrasion-resistant solids-handling pump
  • Heavy duty, high-chrome agitator (28%) for sand/sludge/slurry applications
  • Semi-open chrome impeller and wear plate handles high concentration of abrasive solids
  • Double silicon carbide mechanical seals in a separate oil-filled seal chamber
  • Class 30 ductile iron
  • NPT discharge
  • Hardened ductile top discharge motor housing
  • Heavy duty ball bearings
  • Motor cooled by pumped liquids
  • Seal Minder® moisture detection system (optional)
  • Hardened ductile iron volute
  • Heavy duty lifting rings for easy transport
  • Class H motor insulation
  • 4 pole motor
  • 3-phase voltages
  • 5HP – 30HP

Literature

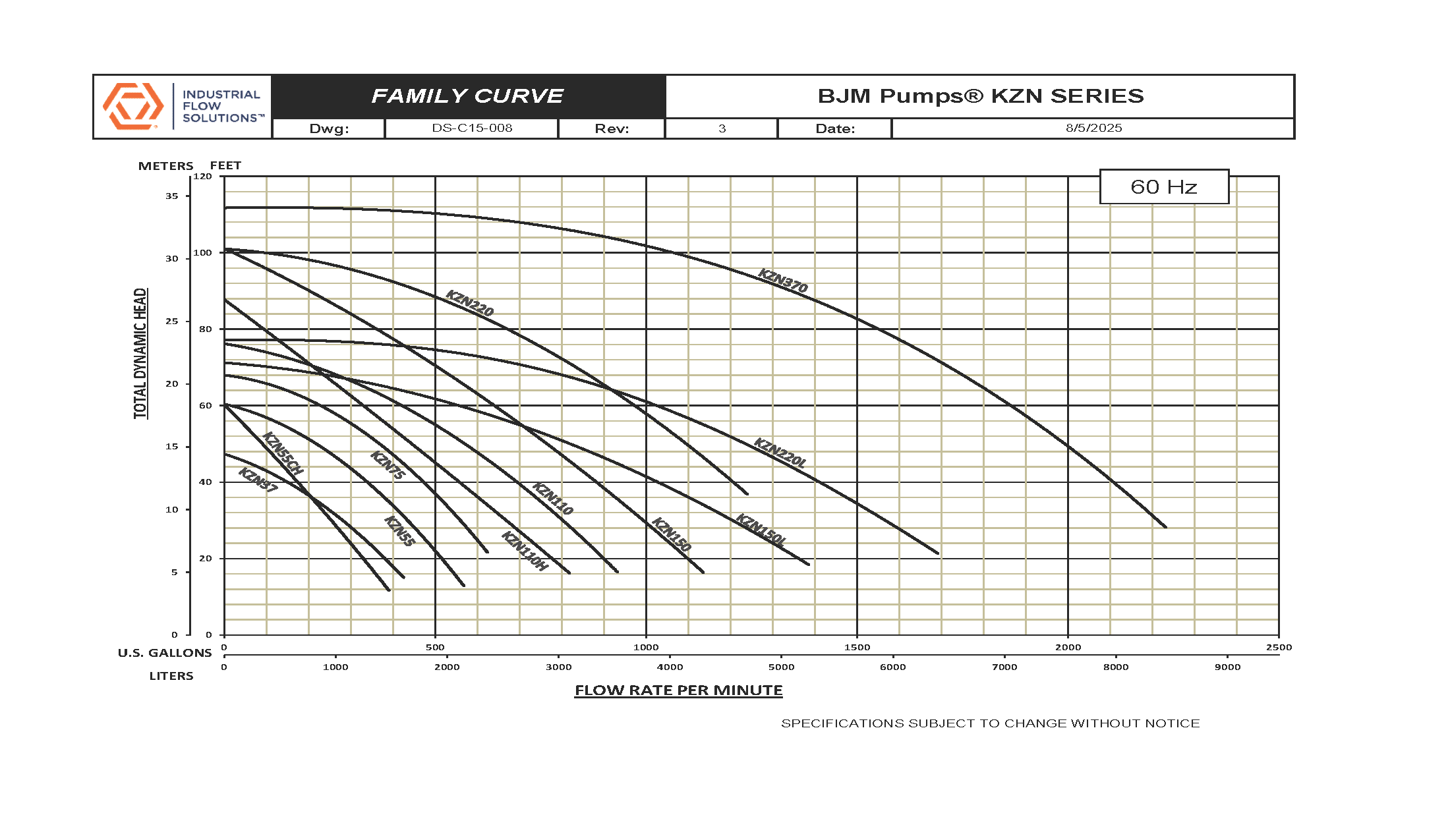

ModelDatasheet & CurvesMotor RatingVoltagePhase FrequencyFull Load AmpsDischargeWeightMax HeadMax FlowMax Solids
KZN37 Download IFS-BJM-KZN37-datasheet.pdf 5hp230/460/5753ph-60Hz17/8.5/6.83" NPT-M (4" NPT-M optional)380 lbs42'475 GPM0.875"
KZN55 Download IFS-BJM-KZN55-datasheet.pdf 7.5hp230/460/5753ph-60Hz19.5/9.5/7.84" NPT-M (3" NPT-M optional)385 lbs42'594 GPM1"
KZN55CH Download IFS-BJM-KZN55CH-datasheet.pdf 7.5hp230/460/5753ph-60Hz19.5/9.5/7.83" NPT-M (4" NPT-M optional)420 lbs69'449 GPM1"
KZN75 Download IFS-BJM-KZN75-datasheet.pdf 10hp460/5753ph-60Hz13/10.54" NPT-M (3" NPT-M optional)410 lbs61'655 GPM1"
KZN110 Download IFS-BJM-KZN110-datasheet.pdf 15hp460/5753ph-60Hz17.5/13.76" NPT-M667 lbs72'977 GPM1.375"
KZN110H Download IFS-BJM-KZN110H-datasheet.pdf 15hp460/5753ph-60Hz17.5/13.74" NPT-M680 lbs87'819 GPM1.375"
KZN150 Download IFS-BJM-KZN150-datasheet.pdf 20HP460/5753ph-60Hz26/19.86" NPT-M680 lbs101'1136 GPM1.5"
KZN150L Download IFS-BJM-KZN150L-datasheet.pdf 20HP460/5753ph-60Hz26/19.86" NPT-M680 lbs70.5'1611 GPM1.5"
KZN220 Download IFS-BJM-KZN220-datasheet.pdf 30hp460/5753ph-60Hz39/30.26" NPT-M (8" FLANGE optional)1275 lbs105'1268 GPM1.5"
KZN220L Download IFS-BJM-KZN220L-datasheet.pdf 30hp460/5753ph-60Hz39/30.26" NPT-M (8" FLANGE optional)1275 lbs77'1690 GPM1.5"
