Explosion Proof, Abrasion-Resistant, Solids Handling Pump
- Explosion-proof, abrasion-resistant, solids-handling pump
- FM-approved explosion proof motor
- Meets NFPA (70), NEC, OSHA requirements for Class I, Division 1, Group C & D hazardous locations (temp. code T3C)
- Abrasion-resistant, solids-handling pump
- Heavy duty high-chrome agitator (28%) for sand/sludge/slurry applications
- Double silicon carbide mechanical seals in a separate oil-filled seal chamber
- Class 30 ductile iron
- NPT discharge
- Hardened ductile top discharge motor housing
- Heavy duty ball bearings
- Motor cooled by pumped liquids
- Seal Minder® moisture detection system
- Hardened ductile iron volute
- Heavy duty lifting rings for easy transport
- Class H motor insulation
- 4 pole motor
- 5 HP – 10 HP
- 3-phase voltages

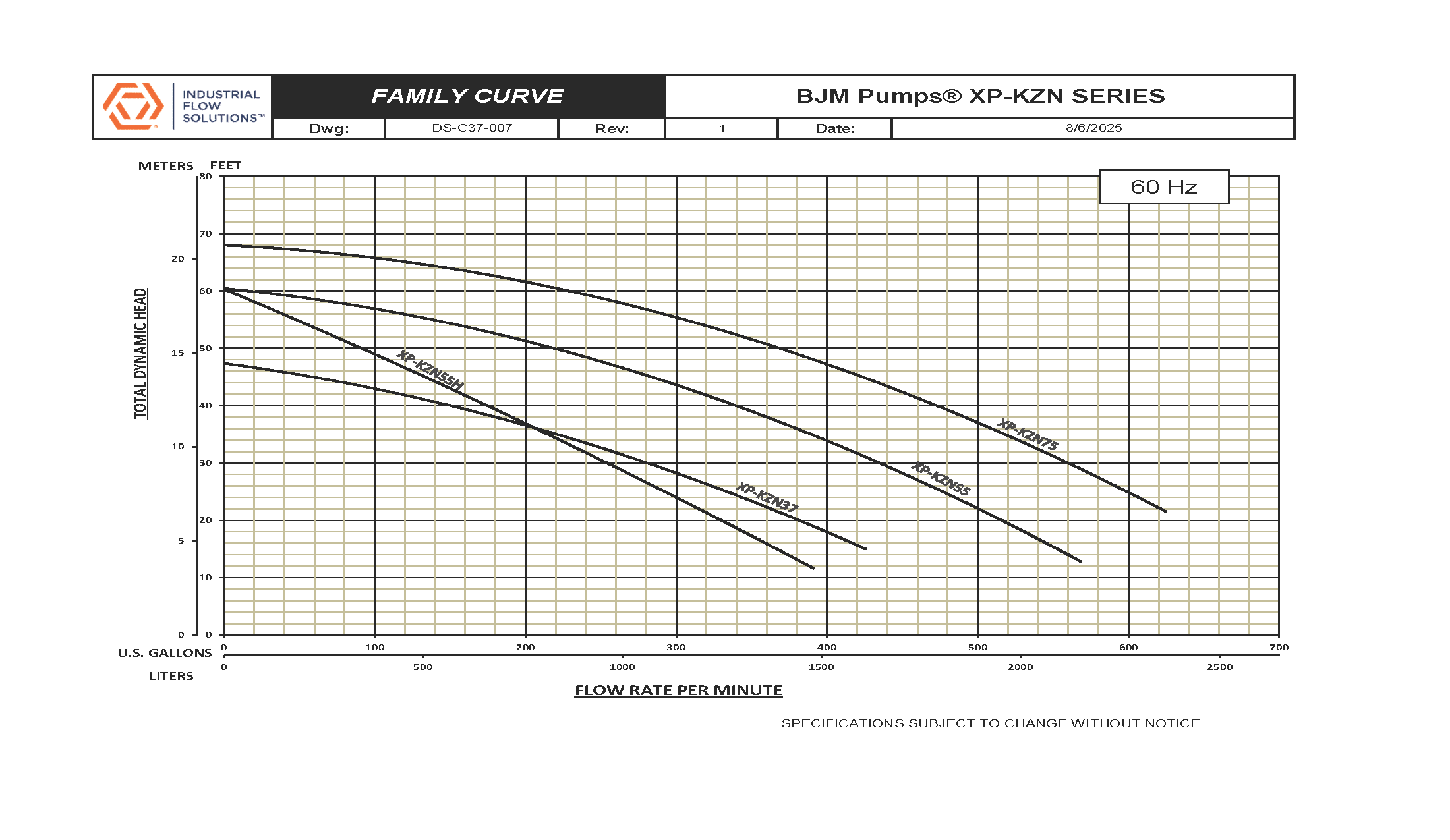

| Model | Datasheet & Curves | Motor Rating | Voltage | Phase Frequency | Full Load Amps | Discharge | Weight | Max Head | Max Flow | Max Solids |
|---|---|---|---|---|---|---|---|---|---|---|
| XP-KZN37 |
Download IFS-BJM-XPKZN37-datasheet.pdf
| 5hp | 230/460/575 | 3ph-60Hz | 17/8.8/6.8 | 3" NPT-M | 395 lbs | 42' | 475 GPM | 7/8" |
| XP-KZN55 |
Download IFS-BJM-XPKZN55-datasheet.pdf
| 7.5hp | 230/460/575 | 3ph-60Hz | 19.5/9.5/7.8 | 4" NPT-M | 415 lbs | 57' | 594 GPM | 1" |
| XP-KZN55CH |
Download IFS-BJM-XPKZN55CH-datasheet.pdf
| 7.5hp | 230/460/575 | 3ph-60Hz | 19.5/9.5/7.8 | 3" NPT-M | 440 lbs | 69' | 449 GPM | 1" |
| XP-KZN75 |
Download IFS-BJM-XPKZN75-datasheet.pdf
| 10hp | 460/575 | 3ph-60Hz | 13/13.5 | 4" NPT-M | 440 lbs | 61' | 655 GPM | 1" |
