Explosion Proof, Shredder Pump
- Explosion proof, shredding/ cutting pump
- FM-approved EXPLOSION-PROOF, pump designed to tear, break, rip solids
- Meets NFPA (70), NEC, OSHA requirements for Class I, Division 1, Group C & D hazardous locations (temp. code T4)
- Tungsten carbide-tipped impeller
- Max solids from 1.6” – 3.5”
- Motor housing: cast iron
- Dual mechanical seals
- Seal Minder® moisture detection system
- ANSI or NPT discharge flange
- Integrated, removable pump stand
- 33’ power and Seal Minder Cable
- Heavy duty lifting rings
- Built-in thermal protection
- Class F motor insulation
- 2-pole and 4-pole motors available
- 3-phase voltages
- 2HP – 20HP
- Free-standing and guide-rail mounted compatibility

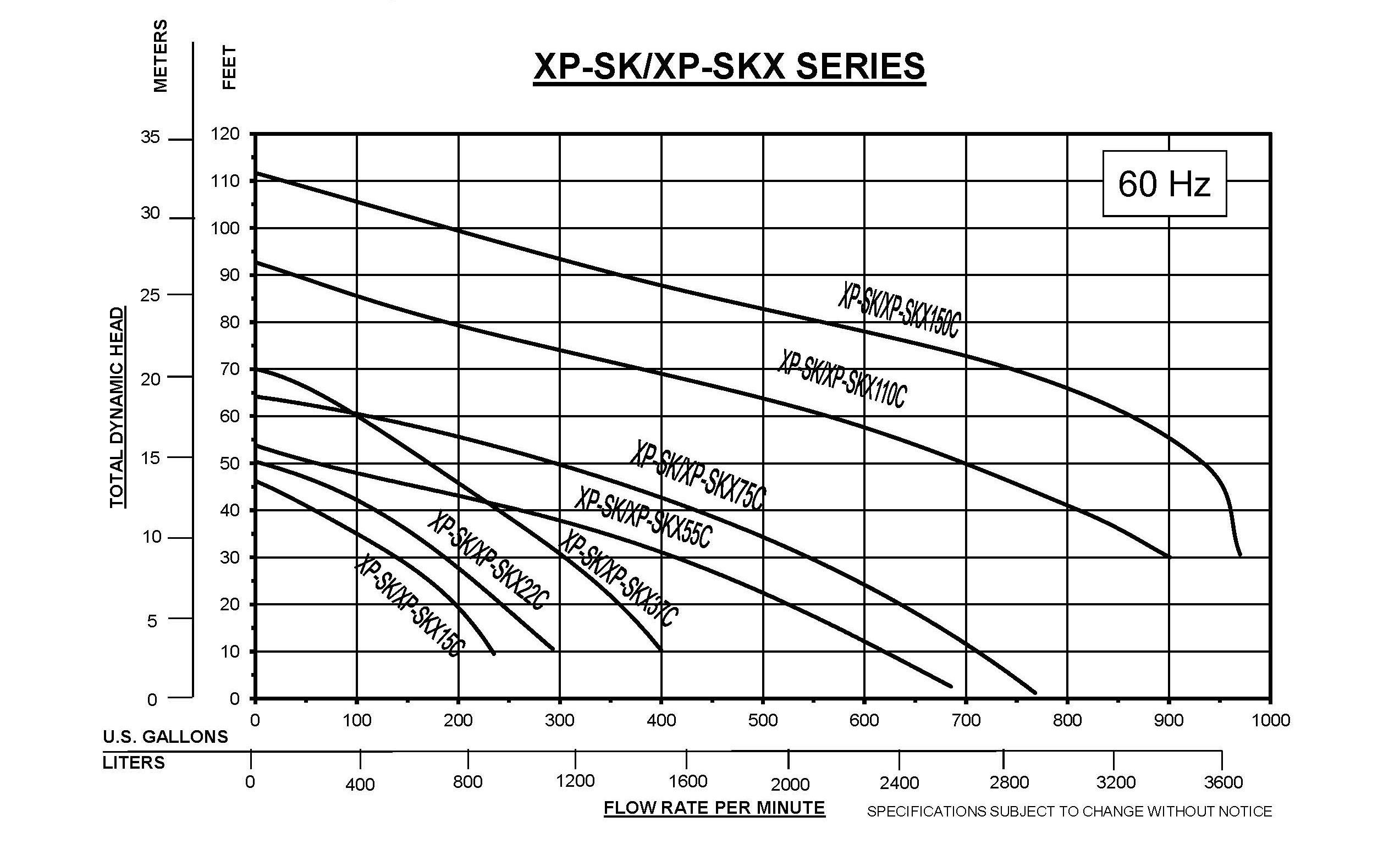

| Model | Datasheet & Curves | Motor Rating | Voltage | Phase Frequency | Full Load Amps | Discharge | Weight | Max Head | Max Flow | Max Solids |
|---|---|---|---|---|---|---|---|---|---|---|
| XP-SK15C |
Download IFS-BJM-XPSK15C-datasheet.pdf
| 2hp | 208/230/460/575 | 3ph-60Hz | 6.6/6.2/3.1/2.5 | 3" NPT-M | 160 lbs | 42' | 220 GPM | 1.6" |
| XP-SK22C |
Download IFS-BJM-XPSK22C-datasheet.pdf
| 3hp | 208/230/460/575 | 3ph-60Hz | 9.4/8.9/4.5/3.6 | 3" NPT-M | 170 lbs | 45' | 270 GPM | 1.6" |
| XP-SK37C |
Download IFS-BJM-XPSK37C-datasheet.pdf
| 5hp | 208/230/460/575 | 3ph-60Hz | 15/13.9/7/5.6 | 3" NPT-M | 180 lbs | 62' | 360 GPM | 1.6" |
| XP-SK55C |
Download IFS-BJM-XPSK55C-datasheet.pdf
| 7.5hp | 208/230/460 | 3ph-60Hz | 19.4/9.7/7.8/12.6 | 4" NPT-F | 400 lbs | 54' | 570 GPM | 3.5" |
| XP-SK75C |
Download IFS-BJM-XPSK75C-datasheet.pdf
| 10hp | 460/575 | 3ph-60Hz | 12.6/10 | 4" NPT-F | 420 lbs | 64' | 670 GPM | 3.5" |
| XP-SK110C |
Download IFS-BJM-XPSK110C-datasheet.pdf
| 15hp | 460/575 | 3ph-60Hz | 17.5/14.9 | 6" FLANGE, ANSI | 580 lbs | 92' | 870 GPM | 3.5" |
| XP-SK150C |
Download IFS-BJM-XPSK150C-datasheet.pdf
| 20HP | 460/575 | 3ph-60Hz | 24/19.2 | 6" FLANGE, ANSI | 775 lbs | 110' | 900 GPM | 3.5" |
