KZE Series
- High capacity, hard metal slurry pump with agitator
- High chrome iron ware parts (volute, impeller, wear plate)
- High chrome iron agitator
- Semi-open impeller capable of passing 1” solids
- (FLA) and temperature overload protection
- Oil-lubricated, double mechanical seal design
- Heavy duty lip seal and labyrinth rings
- Class H motor insulation with amperage

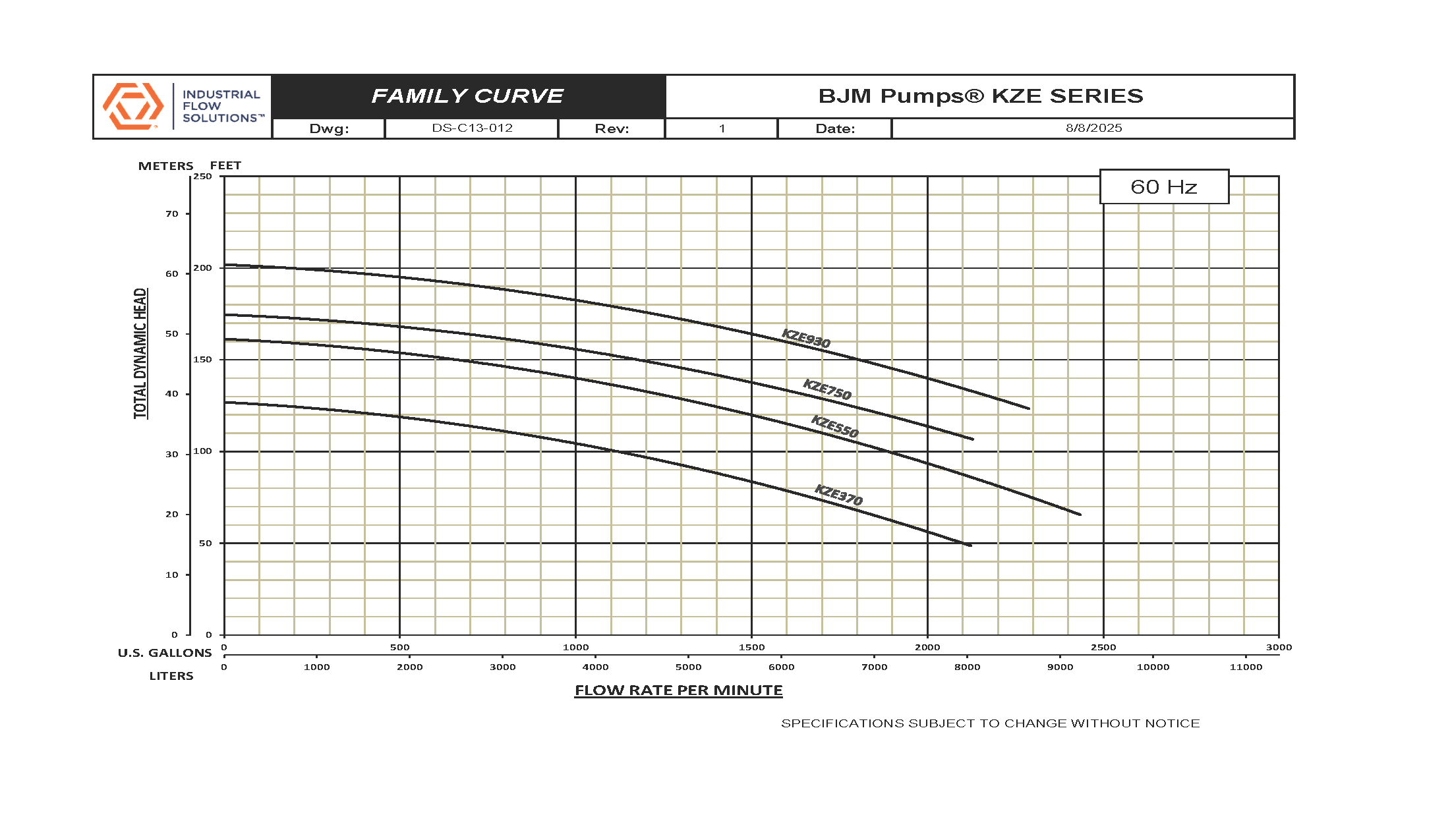

| Model | Datasheet & Curves | Motor Rating | Voltage | Phase Frequency | Full Load Amps | Discharge | Weight | Max Head | Max Flow | Max Solids |
|---|---|---|---|---|---|---|---|---|---|---|
| KZE370 |
Download IFS-BJM-KZE370-datasheet.pdf
| 50HP | 460/575 | 3ph-60Hz | 62/50 | 8" ANSI | 1580 lbs | 124' | 2200 GPM | 1" |
| KZE550 |
Download IFS-BJM-KZE550-datasheet.pdf
| 75HP | 460/575 | 3ph-60Hz | 88/70 | 8" ANSI | 1955 lbs | 163' | 2415 GPM | 1" |
| KZE750 |
Download IFS-BJM-KZE750-datasheet.pdf
| 100hp | 460 | 3ph-60Hz | 118 | 8" ANSI | 2300 lbs | 185' | 2500 GPM | 1.3" |
| KZE930 |
Download IFS-BJM-KZE930-datasheet.pdf
| 125HP | 460/575 | 3ph-60Hz | 146 | 8" ANSI | 2500 lbs | 203' | 2641 GPM | 1.3" |
