SF Series
- Fahrenheit® High Temperature, solids-handling pump
- HIGH TEMPERATURE up to 200°F (93°C)
- Single vane impeller
- Oil-lubricated, double mechanical seals
- 304 stainless steel motor housing
- Seal Minder® Moisture detection system
- Built-in thermal protection
- Class R insulation
- 2 pole motor
- 3-phase voltages
- 7.5 HP – 10 HP
- Hardened cast iron stands

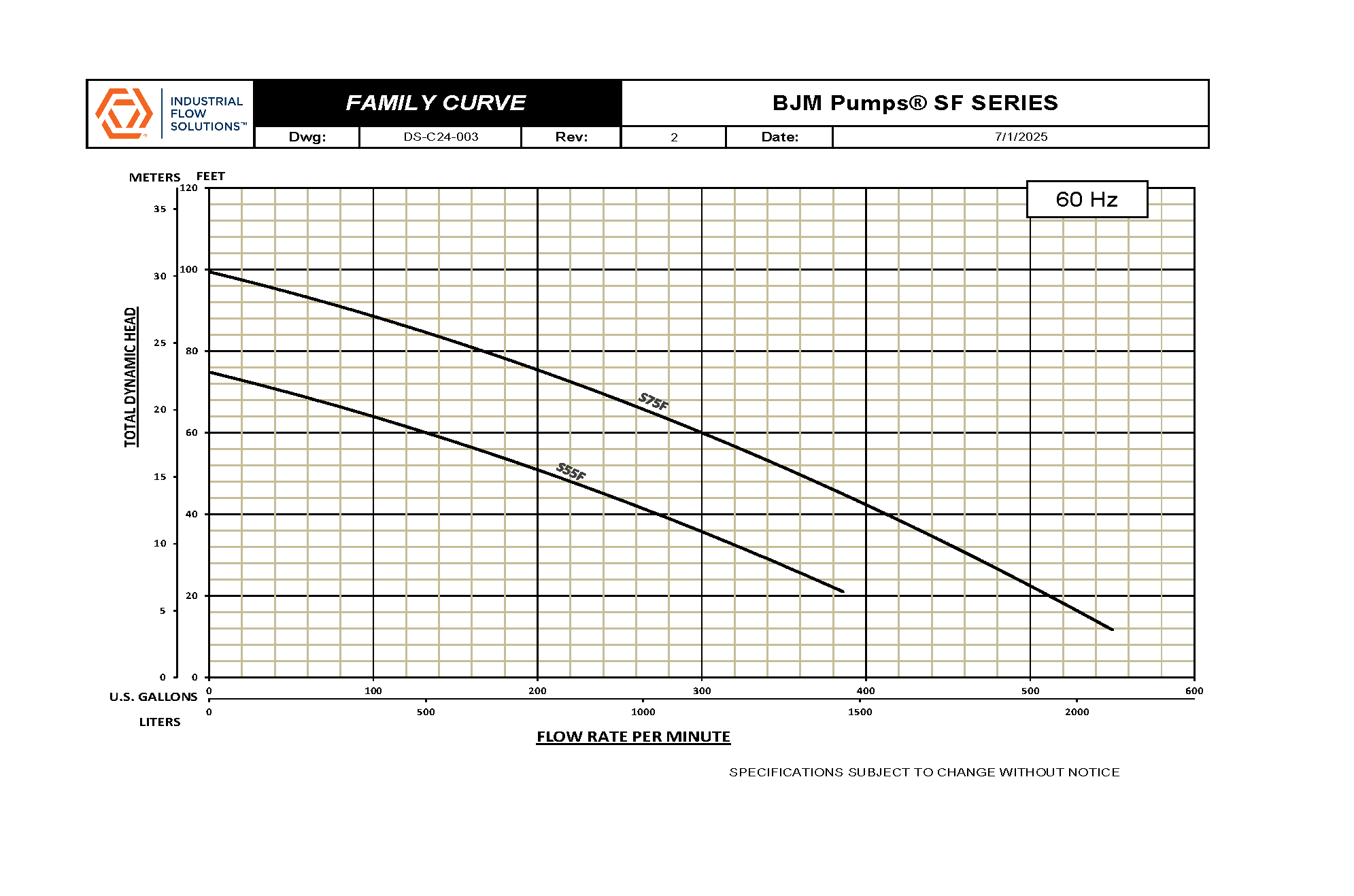

Model | Datasheet & Curves | Motor Rating | Voltage | Phase Frequency | Full Load Amps | Discharge | Weight | Max Head | Max Flow | Max Solids |
---|---|---|---|---|---|---|---|---|---|---|
S55CF |
| 7.5hp | 230/460/575 | 3ph-60Hz | 21/10.5/7.6 | 4" NPT-F | 250 lbs | 78’ | 450 GPM | 2.5” |
S75CF |
| 10hp | 230/460/575 | 3ph-60Hz | 15/10.5 | 4" NPT-F | 265 lbs | 99' | 590 GPM | 2.5” |
