J Series BJM Pump

General Sump Dewatering Pump

  • General sump dewatering pump
  • High flow up to 650 GPM
  • Cast iron construction
  • 304 stainless steel motor housing
  • Double mechanical seal design with separate lip seal
  • Seal Minder® moisture detection system (optional)
  • Built in thermal protection
  • Solids capability up to 3/8”
  • 2 pole motor
  • Side discharge
  • 0.5HP – 10HP
Let Us Help Design Your System

Literature

Brochure
Dimensions
Specifications
Parts Lists/Exploded Views
Operation Manual

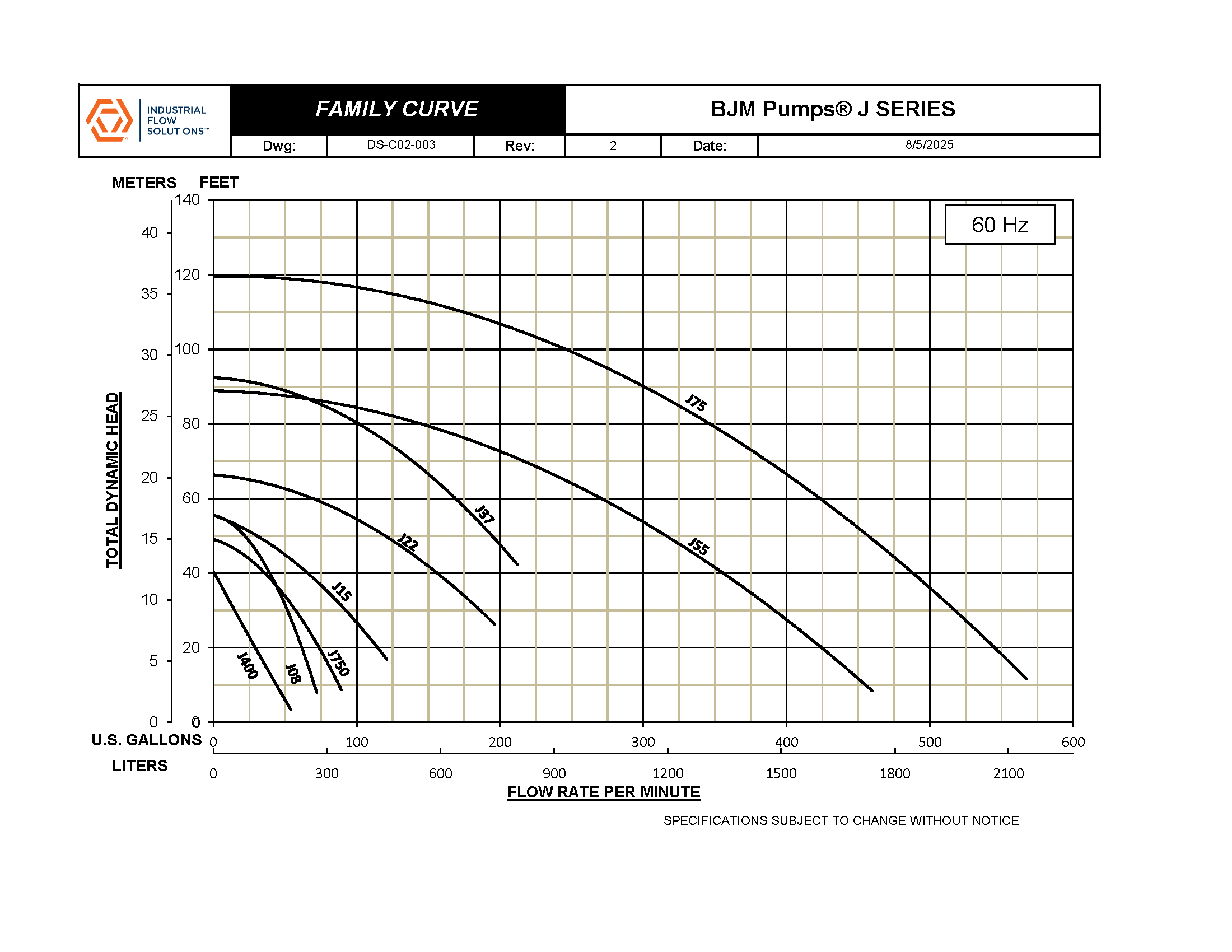

ModelDatasheet & CurvesMotor RatingVoltagePhase FrequencyFull Load AmpsDischargeWeightMax HeadMax FlowMax Solids
J400 Download IFS-BJM-J400-datasheet-curve-DS-C02-009-11.05.2025.pdf 0.5HP (0.4kW)115/2301ph-60Hz7.6/3.82" NPT38.1lbs (17.3kg)41ft (12.5m)55GPM (208LPM)0.12in (3mm)
J750 Download IFS-BJM-J750-datasheet-curve-DS-C02-010-11.05.2025.pdf 1HP (0.7kW)115/2301ph-60Hz14/72" NPT66lbs (29.9kg)50ft (15.2m)90GPM (341LPM)0.19in (5mm)
J08 Download IFS-BJM-J08-datasheet-curve-DS-C02-008-11.05.2025.pdf 1hp208/230/460/5753ph-60Hz3.5/3/1.6/1.32" NPT58lbs (26.3kg)56ft (17.1m)73GPM (276LPM)0.19in (5mm)
J15 Download IFS-BJM-J15-datasheet-curve-DS-C02-007-11.05.2025.pdf 2HP (1.5kW)208/230/460/5753ph-60Hz6.3/6/3/2.33"NPT69lbs (31.3kg)56ft (17.1m)121GPM (458LPM)0.19in (5mm)
J22 Download IFS-BJM-J22-datasheet-curve-DS-C02-006-11.05.2025-1.pdf 3HP (2.2kW)208/230/460/5753ph-60Hz9.45/9/4.5/3.23"NPT99.2lbs (45kg)67ft (20.4m)197GPM (746LPM)0.37in (9mm)
J37 Download IFS-BJM-J37-datasheet-curve-DS-C02-005-11.05.2025.pdf 5.0HP (3.7kW)208/230/460/5753ph-60Hz14.2/14/7/5.53" Flange w/ 4" NPT-F discharge (3" NPT-M optional)108lbs (49kg)93ft (28.3m)213GPM (806LPM)0.37in (9mm)
J55C Download IFS-BJM-J55-datasheet-curve-DS-C02-004-11.05.2025.pdf 7.5HP (5.6kW)230/460/5753ph-60Hz21/10.5/7.64"NPT-F220lbs (99.8kg)89ft (27.1m)460GPM (1741LPM)0.37in (9mm)
J75C Download IFS-BJM-J75-datasheet-curve-DS-C02-002-11.05.2025.pdf 10HP (7.5kW)460/5753ph-60Hz15/10.54"NPT-F255.7lbs (116kg)120ft (36.6m)568GPM (2150LPM)0.37in (9mm)
