High Temperature Dewatering Pump
- Fahrenheit® High Temperature General Dewatering
- High Temperature up to 200°F (93°C)
- High flow up to 650 GPM
- Double mechanical seal design with separate lip seal
- Cast iron construction
- 304 stainless steel motor housing
- Solids capability up to 3/8”
- Seal Minder® moisture detection system
- Built in thermal protection
- Class R insulation
- Side discharge
- 2 pole motor
- 1 HP – 10 HP

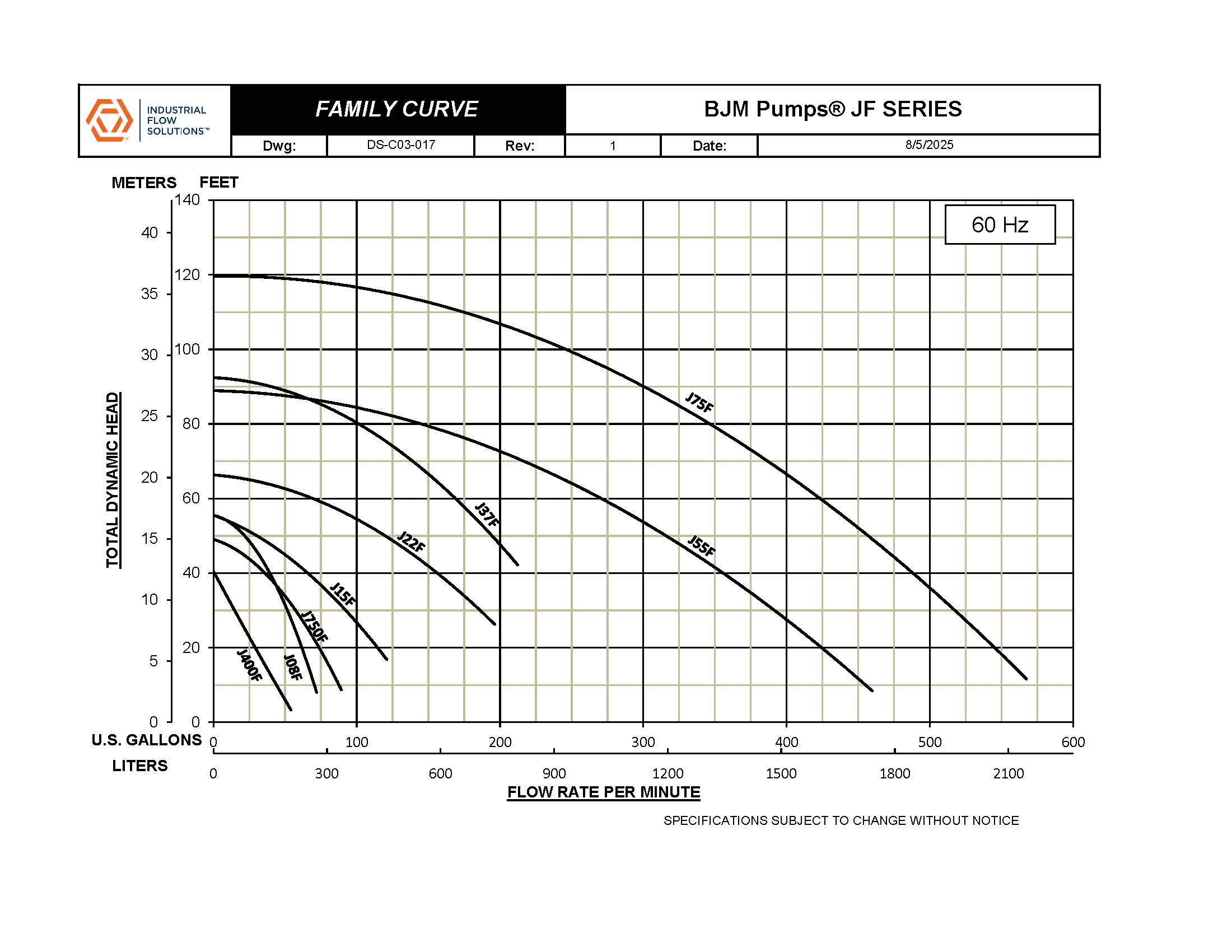

| Model | Datasheet & Curves | Motor Rating | Voltage | Phase Frequency | Full Load Amps | Discharge | Weight | Max Head | Max Flow | Max Solids |
|---|---|---|---|---|---|---|---|---|---|---|
| J400F |
Download IFS-BJM-J400F-datasheet.pdf
| 0.5HP | 115/230 | 1ph-60Hz | 8.5/5.5 | 2" NPT-M | 454 lbs | 35' | 66 GPM | 1/8" |
| J750F |
Download IFS-BJM-J750F-datasheet.pdf
| 1hp | 115/230 | 1ph-60Hz | 16/8.5 | 2" NPT-M | 85 lbs | 50' | 91 GPM | 3/16" |
| J08F |
Download IFS-BJM-J08F-datasheet.pdf
| 1hp | 208/230/460/575 | 3ph-60Hz | 3.5/3.2/1.6/1.3 | 2" NPT-M | 60 lbs | 50' | 91 GPM | 3/16" |
| J15F |
Download IFS-BJM-J15F-datasheet.pdf
| 2hp | 208/230/460/575 | 3ph-60Hz | 6.3/6/3/2.3 | 3" NPT-M | 70 lbs | 60' | 158 GPM | 3/16" |
| J22F |
Download IFS-BJM-J22F-datasheet.pdf
| 3hp | 208/230/460/575 | 3ph-60Hz | 9.45/9/4.5/3.2 | 3" NPT-M | 105 lbs | 75' | 237 GPM | 3/8" |
| J37F |
Download IFS-BJM-J37F-datasheet.pdf
| 5hp | 208/230/460/575 | 3ph-60Hz | 14.7/14/7/5.5 | 3" FLANGE W/ 4" NPT-F DISCHARGE | 115 lbs | 95' | 264 GPM | 3/8" |
| J55CF |
Download IFS-BJM-J55CF-datasheet.pdf
| 7.5hp | 230/460/575 | 3ph-60Hz | 21/10.5/7.6 | 4" NPT-F | 220 lbs | 91' | 515 GPM | 3/8" |
| J75CF |
Download IFS-BJM-J75CF-datasheet.pdf
| 10hp | 460/575 | 3ph-60Hz | 15/10.5 | 4" NPT-F | 255 lbs | 110' | 647 GPM | 3/8" |
