High Head, Dewatering Pump
- High head general sump dewatering
- High head up to 140’
- Double mechanical seal design with separate lip seal
- Seal Minder® moisture detection system (optional)
- Cast iron construction
- 304 stainless steel motor housing
- Built in thermal protection
- Solids capability up to 3/8”
- 2 pole motor
- Side discharge
- 2HP – 10HP

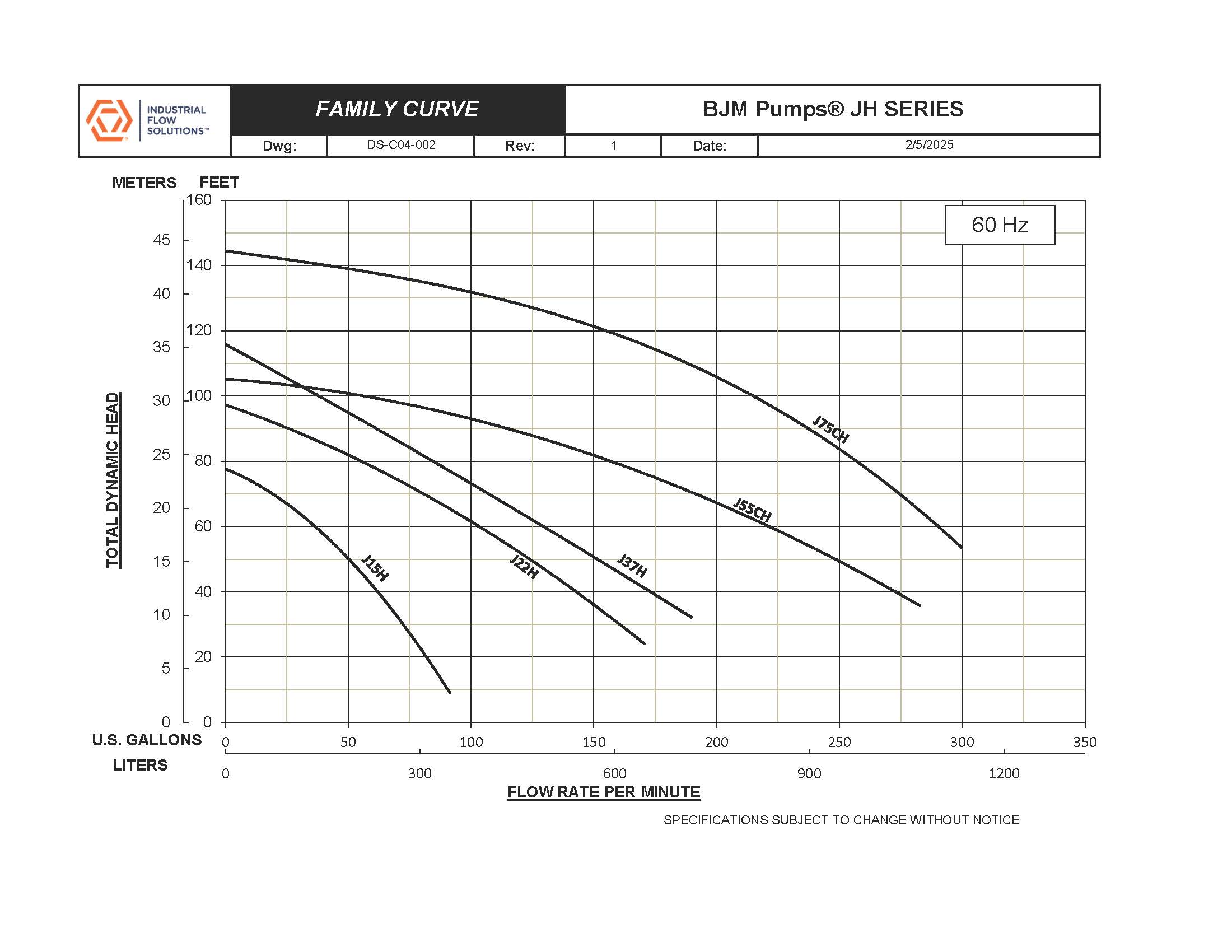

| Model | Datasheet & Curves | Motor Rating | Voltage | Phase Frequency | Full Load Amps | Discharge | Weight | Max Head | Max Flow | Max Solids |
|---|---|---|---|---|---|---|---|---|---|---|
| J15H |
Download IFS-BJM-J15H-datasheet.pdf
| 2hp | 208/230/460/575 | 3ph-60Hz | 6.3/6/3/2.3 | 2" NPT | 69 lbs | 75' | 105 GPM | 3/16" |
| J22H |
Download IFS-BJM-J22H-datasheet.pdf
| 3hp | 208/230/460/575 | 3ph-60Hz | 9.45/9/4.5/3.2 | 2" NPT | 92 lbs | 95' | 105 GPM | 3/8" |
| J37H |
Download IFS-BJM-J37H-datasheet.pdf
| 5hp | 208/230/460/575 | 3ph-60Hz | 14.7/14/15/5.5 | 2" NPT | 105 lbs | 113' | 192 GPM | 3/8" |
| J55CH |
Download IFS-BJM-J55CH-datasheet.pdf
| 7.5hp | 230/460/575 | 3ph-60Hz | 21/10.5/7.6 | 4" Flange W/ 3" NPT-F Discharge | 224 lbs | 106' | 342 GPM | 3/8" |
| J75CH |
Download IFS-BJM-J75CH-datasheet.pdf
| 10hp | 460/575 | 3ph-60Hz | 15/10.5 | 4" NPT-F | 248 lbs | 141' | 409 GPM | 3/8" |
