JX Series BJM Pump

Corrosion Resistant, Dewatering Pump

  • Corrosion resistant dewatering pump
  • Cast 316 stainless steel (ASTM 48), no welds
  • Rated A or B for corrosive resistance
  • FKM Elastomers (EPDM or Buna Optional)
  • Double mechanical seal design with separate lip seal
  • Seal Minder® moisture detection system (optional)
  • Built in thermal protection
  • 316 stainless steel motor housing
  • Solids capability up to 3/8”
  • High flow up to 650 GPM
  • Class F or H motor insulation
  • Side discharge
  • 2 pole motor
  • .5HP – 30HP
Let Us Help Design Your System

Literature

Brochure
Dimensions
Parts Lists/Exploded Views
Operation Manual
Specifications

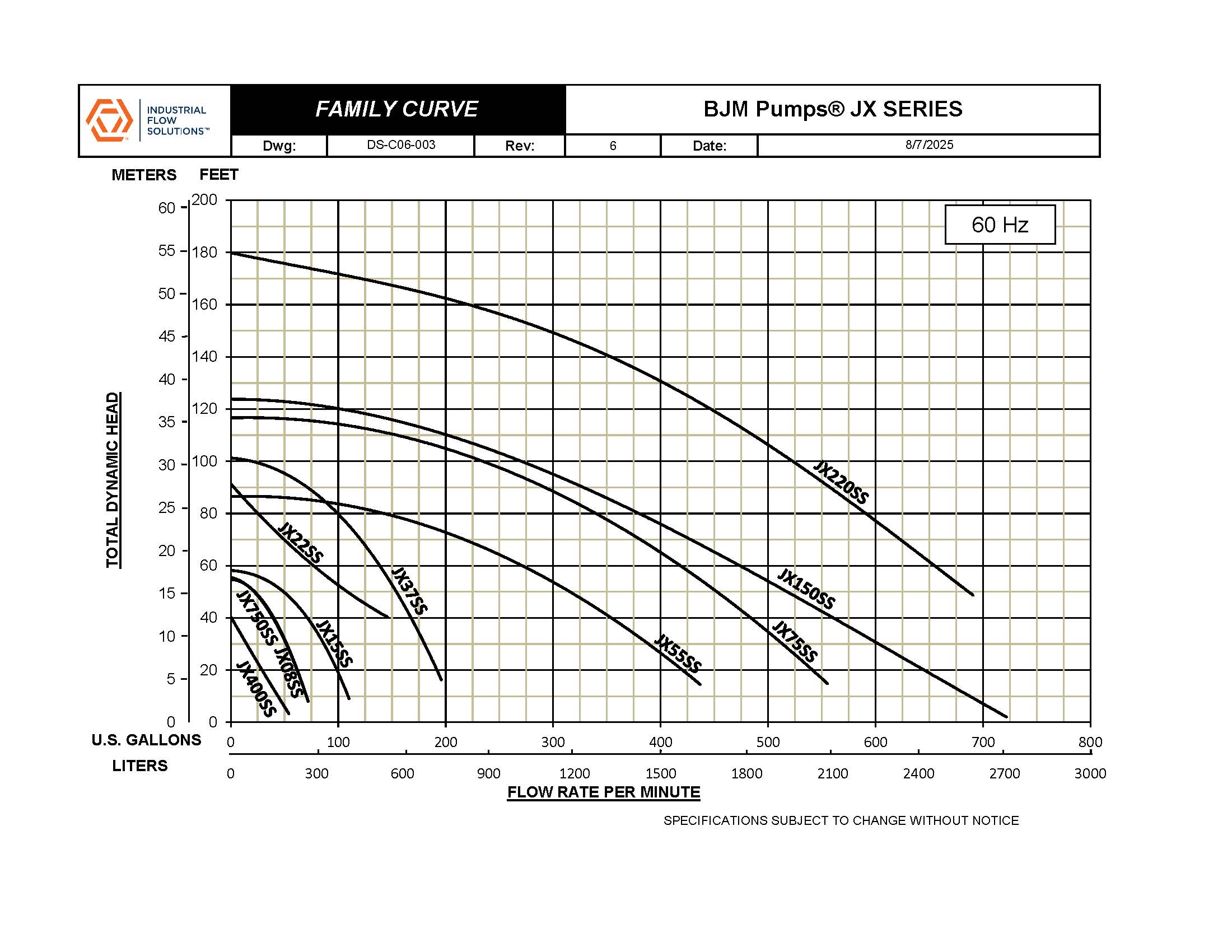

ModelDatasheet & CurvesMotor RatingVoltagePhase FrequencyFull Load AmpsDischargeWeightMax HeadMax FlowMax Solids
JX400SS Download IFS-BJM-JX400SS-datasheet.pdf 0.5HP1151ph-60Hz7.62" NPT-M40 lbs35'66 GPM1/8"
JX08SS Download IFS-BJM-JX08SS-datasheet.pdf 1hp208/230/460/5753ph-60Hz3.5/3.2/1.6/1.32" NPT-M60 lbs50'91 GPM3/16"
JX750SS Download IFS-BJM-JX750SS-datasheet.pdf 1hp115/2303ph-60Hz14/72" NPT-M70 lbs50'91 GPM3/16"
JX15SS Download IFS-BJM-JX15SS-datasheet.pdf 2hp208/230/460/5753ph-60Hz6.3/6/3/2.33" NPT-M72 lbs60'158 GPM3/16"
JX22SS Download IFS-BJM-JX22SS-datasheet.pdf 3hp208/230/460/5753ph-60Hz9.45/9/4.5/3.23" NPT-M100 lbs75'237 GPM3/8"
JX37SS Download IFS-BJM-JX37SS-datasheet.pdf 5hp208/230/460/5753ph-60Hz14.7/14/7/5.54" NPT-F (3"NPT-M optional)110 lbs95'264 GPM3/8"
JX55CSS Download IFS-BJM-JX55CSS-datasheet.pdf 7.5hp230/460/5753ph-60Hz21/105/7.64" NPT-F233 lbs91'515 GPM3/8"
JX75CSS Download IFS-BJM-JX75CSS-datasheet.pdf 10hp460/5753ph-60Hz15/10.54" NPT-F258 lbs110'647 GPM3/8"
JX150CSS Download IFS-BJM-JX150CSS-datasheet.pdf 20HP460/5753ph-60Hz23/18.46" ANSI SLIP WELD FLANGE450 lbs131'670 GPM1"
JX220CSS Download IFS-BJM-JX220CSS-datasheet.pdf 30hp460/5753ph-60Hz32/25.66" ANSI SLIP WELD FLANGE500 lbs172'722 GPM1"
