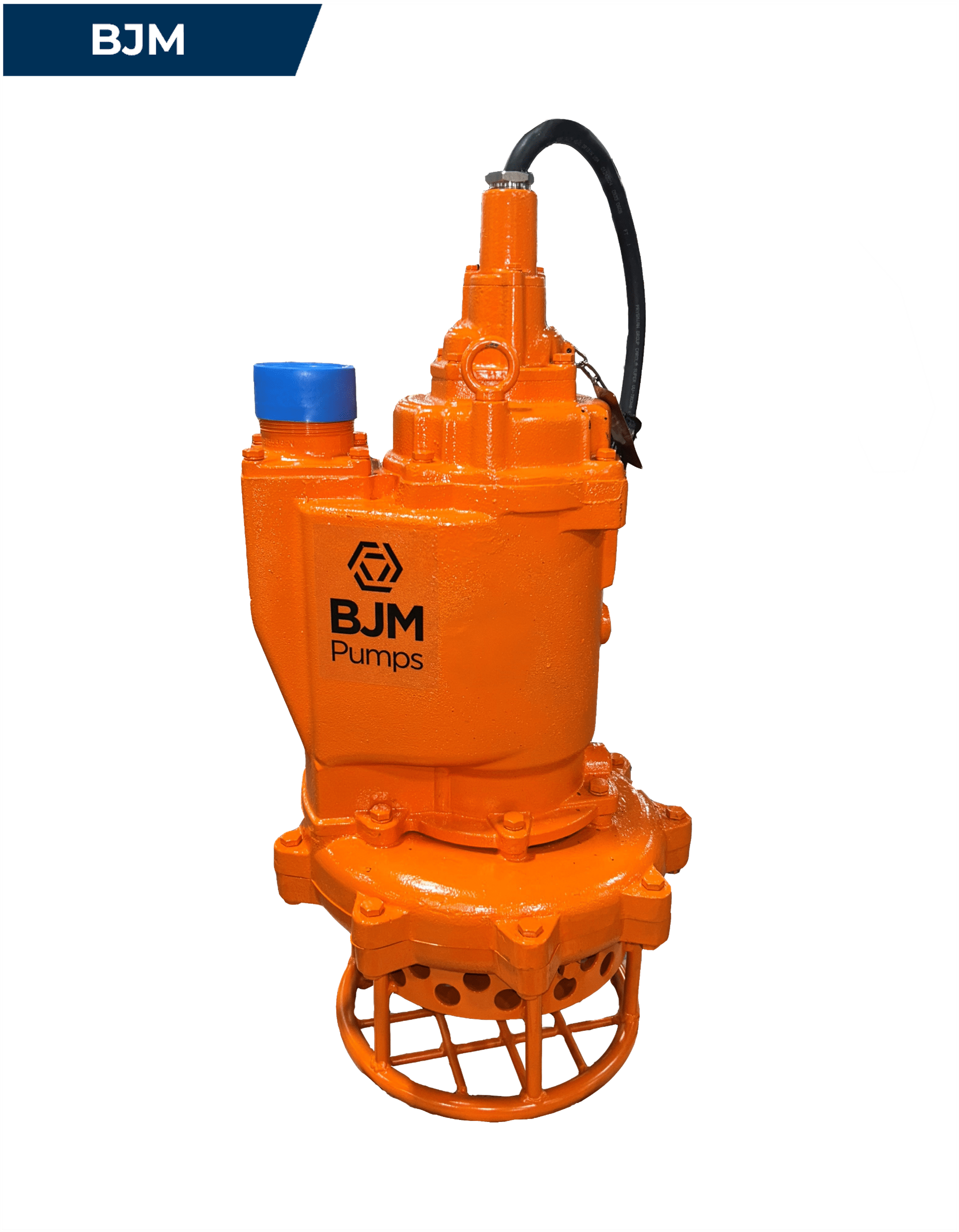

Maximum-Duty Submersible Slurry Pumps
- Maximum-Duty, high-chrome agitator for sand/ sludge/ slurry applications
- Semi-open chrome impeller and wear plate handles high concentration of abrasive solids
- Double silicon carbide mechanical seals in a separate oil-filled seal chamber
- Class 30 ductile iron
- NPT discharge
- Hardened ductile top discharge motor housing
- Heavy-duty ball bearings
- Motor cooled by pumped liquids
- Seal Minder® moisture detection system (optional)
- Hardened ductile iron volute
- Heavy-duty lifting rings for easy transport
- Class H motor insulation
- 4-pole motor
- 3-phase voltages
- 5HP – 30HP

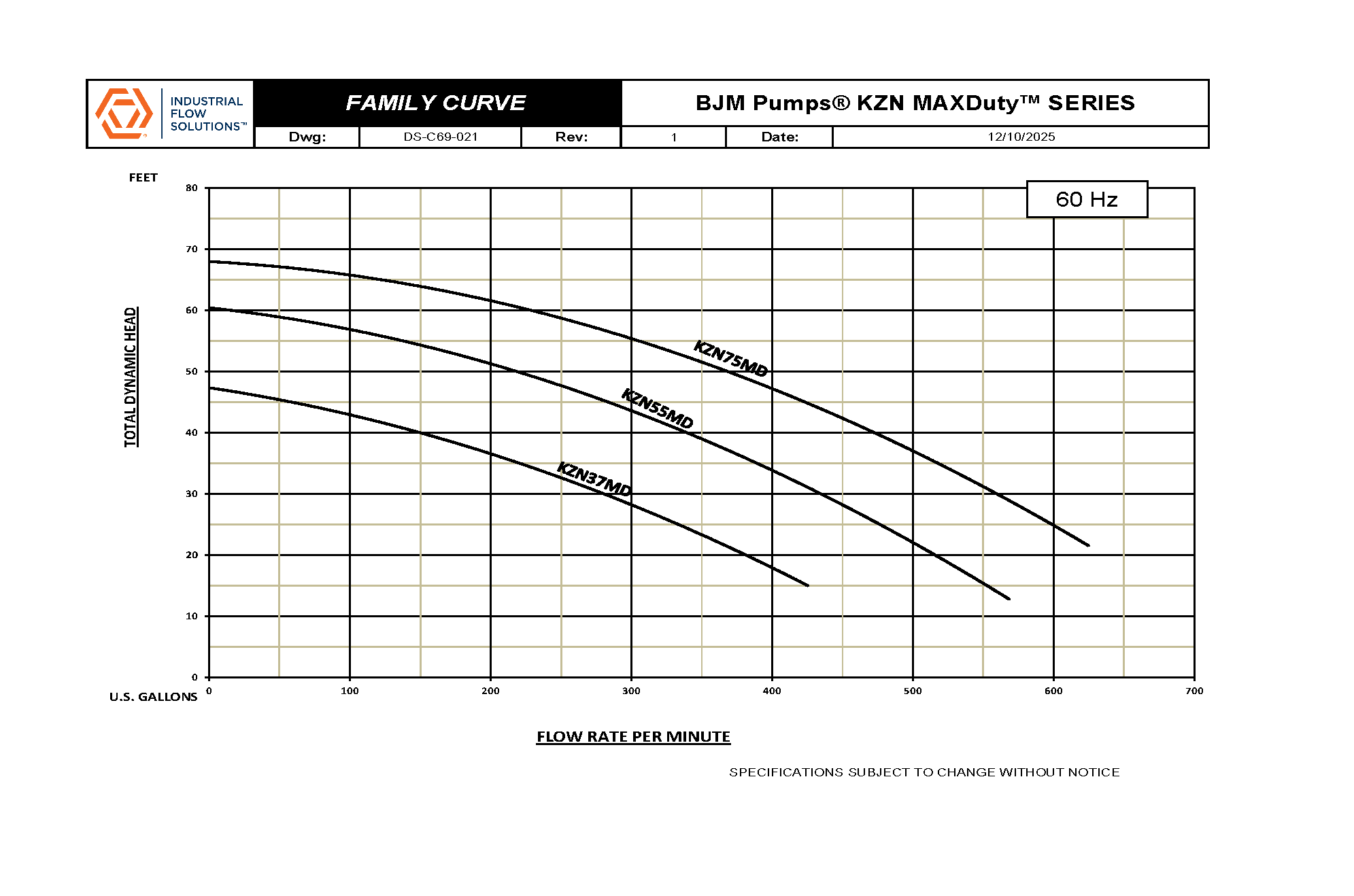

| Model | Datasheet & Curves | Motor Rating | Voltage | Phase Frequency | Full Load Amps | Discharge | Weight | Max Head | Max Flow | Max Solids |
|---|---|---|---|---|---|---|---|---|---|---|
| KZN37MD |
Download IFS-BJM-KZN37MD-datasheet-curve-01.15.2026-DS-C69-001.pdf
| 5HP (3.7kW) | 230/460/575 | 3ph-60Hz | 17 / 8.5 / 6.8 | 3” NPT-M (4” NPT-M optional) | 48 ft / 14 m | 426 GPM / 1613 LPM | 0.875 in / 22.2 mm | |
| KZN55MD |
Download IFS-BJM-KZN55MD-datasheet-curve-01.15.2026-DS-C69-002.pdf
| 7.5HP (5.6kW) | 230/460/575 | 3ph-60Hz | 19.5 / 9.5 / 7.8 | 4” NPT-M (3” NPT-M optional) | 61 ft / 18 m | 568 GPM / 2150 LPM | 1 in / 25.4 mm | |
| KZN75MD |
Download IFS-BJM-KZN75MD-datasheet-curve-01.15.2026-DS-C69-004.pdf
| 10HP (7.5kW) | 460/575 | 3ph-60Hz | 13 / 10.5 | 4” NPT-M (3” NPT-M optional) | 68 ft / 20 m | 625 GPM / 2366 LPM | 1 in / 25.4 mm |
