JXF Series BJM Pump

High Temperature, Corrosion Resistant, Dewatering Pump

  • Fahrenheit® High temperature, Corrosion-Resistant Dewatering Pump
  • High temperature up to 200°F (93°C)
  • Cast 316 stainless steel (ASTM 48), no welds
  • FKM Elastomers (EPDM or Buna optional)
  • Double mechanical seal design with separate lip seal
  • Seal Minder® moisture detection system
  • High flow up to 650 GPM
  • Built in thermal protection
  • 316 stainless steel motor housing
  • Solids capability up to 3/8”
  • Class R motor insulation
  • Side discharge
  • 2 pole motor
  • 1 HP – 10 HP
Let Us Help Design Your System

Literature

Dimensions
Brochure
Parts Lists/Exploded Views

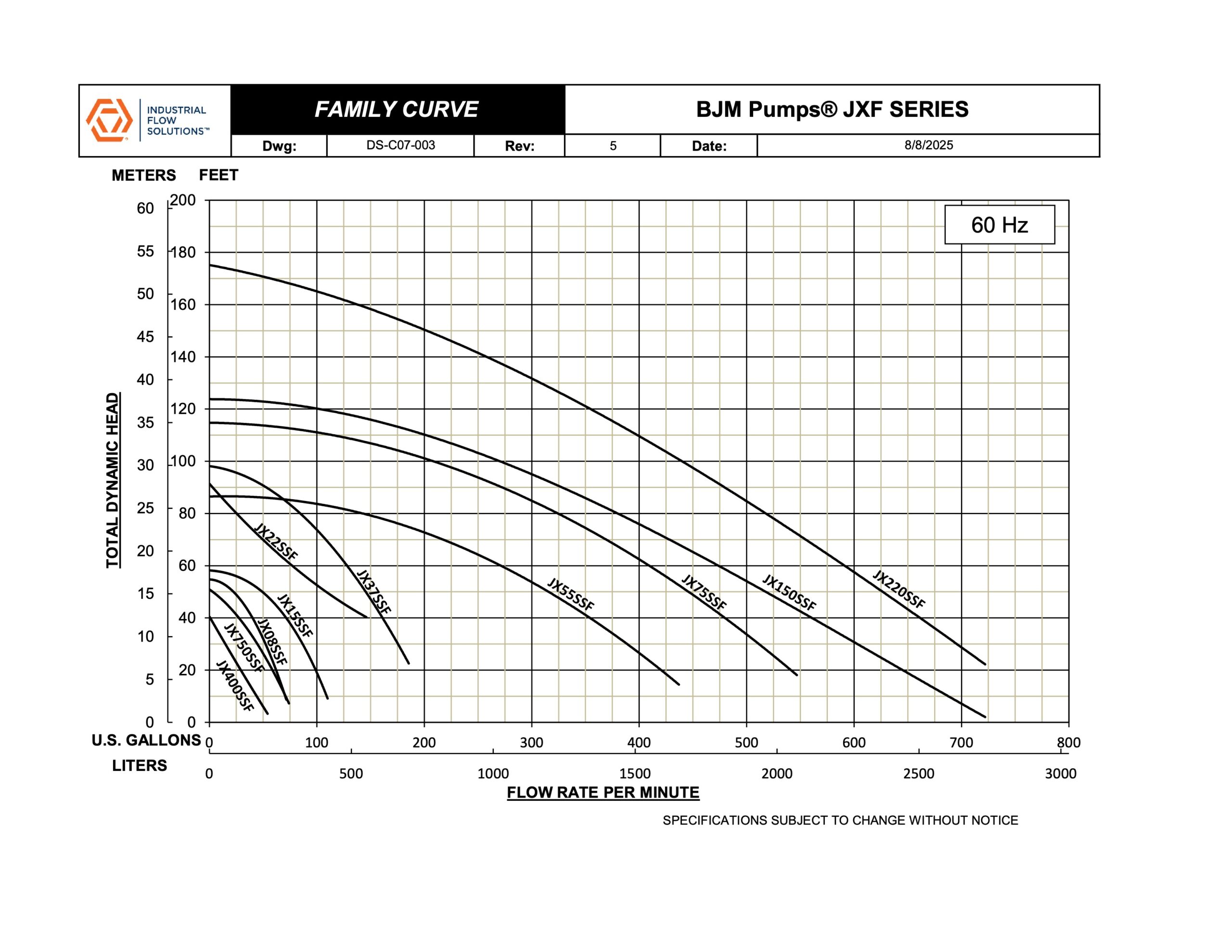

ModelDatasheet & CurvesMotor RatingVoltagePhase FrequencyFull Load AmpsDischargeWeightMax HeadMax FlowMax Solids
JX400SSF Download IFS-BJM-JX400SSF-datasheet.pdf 0.5HP115/2301ph-60Hz8.5/5.52" NPT-M45 lbs35'66 GPM1/8"
JX750SSF Download IFS-BJM-JX750SSF-datasheet.pdf 1hp115/2301ph-60Hz16/8.52" NPT-M70 lbs50'91 GPM3/16"
JX08SSF Download IFS-BJM-JX08SSF-datasheet.pdf 1hp208/230/460/5753ph-60Hz3.5/3.2/1.6/1.32" NPT-M60 lbs50'91 GPM3/16"
JX15SSF Download IFS-BJM-JX15SSF-datasheet.pdf 2hp208/230/460/5753ph-60Hz6.3/6/3/2.33" NPT-M75 lbs60'158 GPM3/16"
JX22SSF Download IFS-BJM-JX22SSF-datasheet.pdf 3hp208/230/460/5753ph-60Hz9.45/9/4.5/3.23" NPT-M105 lbs75'234 GPM3/8"
JX37SSF Download IFS-BJM-JX37SSF-datasheet.pdf 5hp208/230/460/5753ph-60Hz14.7/14/7/5.53" FLANGE W/ 4" NPT-F DISCHARGE115 lbs95'264 GPM3/8"
JX55CSSF Download IFS-BJM-JX55CSSF-datasheet.pdf 7.5hp230/460/5753ph-60Hz21/10.5/7.64" NPT-F235 lbs91'515 GPM3/8"
JX75CSSF Download IFS-BJM-JX75CSSF-datasheet.pdf 10hp460/5753ph-60Hz15/10.54" NPT-F260 lbs110'647 GPM3/8"
JX150CSSF Download IFS-BJM-JX150CSSF-datasheet.pdf 20HP460/5753ph-60Hz23/18.46" ANSI SLIP WELD FLANGE374 lbs131'670 GPM1"
JX220CSSF Download IFS-BJM-JX220CSSF-datasheet.pdf 30hp460/5753ph-60Hz32/25.66" ANSI SLIP WELD FLANGE426 lbs172.6'706 GPM1"
