Solids Handling, Non-Clog Vortex Pump
- Non-clog, solids handling pump with vortex impeller
- Non-clog design for sewage, viscous liquids, rags, effluent water• Abrasion-resistant, non-clog, solids handling pump with vortex impeller
- Abrasion resistance through hardened ductile iron
- Oil-lubricated, double mechanical seals
- 304 stainless steel motor housing
- Seal Minder® Moisture detection system (optional)
- Passes solids up to 90% of pump outlet diameter
- Built-in thermal protection
- Class F insulation
- 2 pole and 4 pole motors available
- Single and 3-phase voltages
- 0.5HP – 10HP

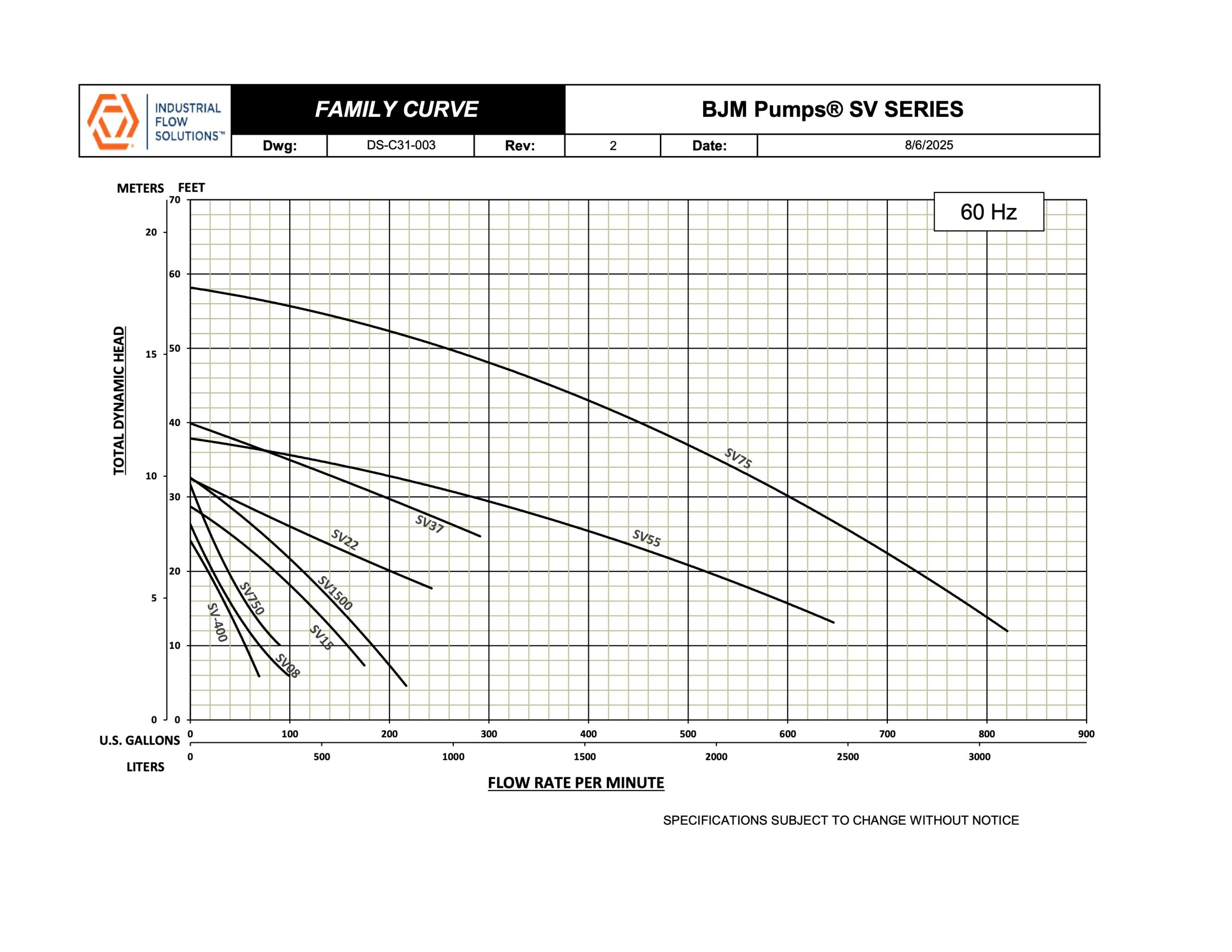

| Model | Datasheet & Curves | Motor Rating | Voltage | Phase Frequency | Full Load Amps | Discharge | Weight | Max Head | Max Flow | Max Solids |
|---|---|---|---|---|---|---|---|---|---|---|
| SV400 |
Download IFS-BJM-DatasheetCurve-DS-C31-015-SV400-Technical-Datasheet-Rev-1111625.pdf
| 0.5HP (0.4kW) | 115/230 | 1ph-60Hz | 7.6/3.8 | 2" NPT-M | 40lbs (18.1kg) | 25ft (7.6m) | 70GPM (265LPM) | 1.5in (38.1mm) |
| SV750C |
Download IFS-BJM-DatasheetCurve-DS-C31-017-SV750C-Technical-Datasheet-Rev-1111625.pdf
| 1HP (0.7kW) | 115/230 | 1ph-60Hz | 14/7 | 3" NPT-M (2" NPT-M optional)/3" NPT-M | 80lbs (36.3kg) | 32ft (9.8m) | 90GPM (341LPM) | 2in (51mm) |
| SV08C |
Download IFS-BJM-DatasheetCurve-DS-C31-002-SV08-Technical-Datasheet-Rev-1111625.pdf
| 1HP (0.7kW) | 208/230/460/575 | 3ph-60Hz | 3.5/3.2/1.6/1.3 | 3" NPT-M (2" NPT-M optional) | 74.1lbs (33.6kg) | 28ft (8.5m) | 99GPM (375LPM) | 2in (51mm) |
| SV15C |
Download IFS-BJM-DatasheetCurve-DS-C31-012-SV15C-Technical-Datasheet-Rev-1111625.pdf
| 2HP (1.5kW) | 208/230/460/575 | 3ph-60Hz | 6.3/6/3/2.3 | 3" NPT-F | 104lbs (47.2kg) | 33ft (10.1m) | 217GPM (821LPM) | 2.5in (64mm) |
| SV1500C |
Download IFS-BJM-DatasheetCurve-DS-C31-019-SV1500C-Technical-Datasheet-Rev-1111625.pdf
| 2HP (1.5kW) | 230/460/575 | 1ph-60Hz | 14 | 3" NPT-F | 96lbs (43.5kg) | 29ft (8.8m) | 175GPM (662LPM) | 2.5in (64mm) |
| SV22C |
Download IFS-BJM-DatasheetCurve-DS-C31-013-SV22C-Technical-Datasheet-Rev-1111625.pdf
| 3HP (2.2kW) | 208/230/460/575 | 3ph-60Hz | 9.45/9/4.5/3.2 | 3" NPT-F | 165lbs (74.8kg) | 33ft (10.1m) | 243GPM (920LPM) | 3in (76mm) |
| SV37C |
Download IFS-BJM-DatasheetCurve-DS-C31-014-SV37C-Technical-Datasheet-Rev-1111625.pdf
| 5HP (3.7kW) | 208/230/460/575 | 3ph-60Hz | 14.7/14/5.5 | 3" NPT-F | 188lbs (85.3kg) | 40ft (12.2m) | 291GPM (1102LPM) | 3in (76mm) |
| SV55C |
Download IFS-BJM-DatasheetCurve-DS-C31-016-SV55C-Technical-Datasheet-Rev-1111625.pdf
| 7.5HP (5.6kW) | 230/460/575 | 3ph-60Hz | 21/10.5/7.8 | 4" NPT-F | 289lbs (131.1kg) | 59ft (18m) | 821GPM (3108LPM) | 3.5in (89mm) |
| SV75C |
Download IFS-BJM-DatasheetCurve-DS-C31-018-SV75C-Technical-Datasheet-Rev-1111625.pdf
| 10HP (7.5kW) | 460/575 | 3ph-60Hz | 15/10.5 | 4" NPT-F | 308lbs (139.7kg) | 59ft (18m) | 821GPM (3108LPM) | 3.5in (89mm) |
