Pump Accessories

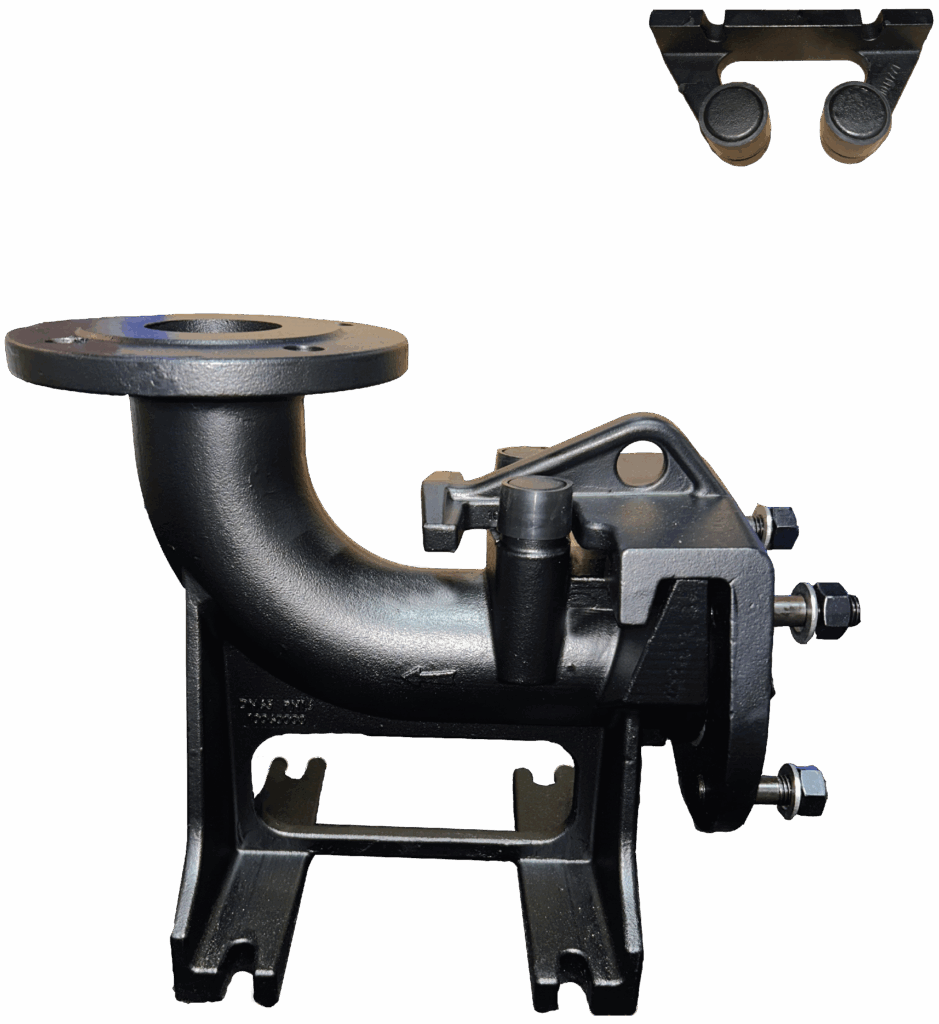

Slide Rails – Cast Iron

Guide Rail Base, Upper Guide Rail Bracket, and Pump Bracket. Assembly does not include guide rail pipe.

Size	Model	Part Number	Pump Models	Dimensional Document Number
2″	SR50-J	201031	J (1 HP) JH (2-5 HP) SC (0.5-1 HP)	DS-C01-014
2″	SR50SV-1	201561	J/SV (0.5 HP)	DS-C01-014
2″	SR50-1	201558	SK (1 HP)	DS-C01-014
2″	GR/GRINDER	GR/GRINDER/NS	SEW (0.5-2 HP) GRIX	DS-A01-112
2″	GR TTS-05	GR TTS-05	SV (STANCOR) (04-1 HP)	DS-A01-113
2″	DUTY DN50	206164	GRIX G2 H2 (2-3 HP)	DS-C01-009
2.5″	DUTY DN65	206165	A2/V2 (2-3 HP) H2 (5-13 HP)	DS-C01-009
3″	SR80-ANSI	204403	SK/SKG (2-5 HP) SV (1-5 HP)	DS-C01-013
3″	BERS-0300	205726	J/JH (3-5 HP)	DS-C01-016
3″	GR-300	GR-300	SC/SV (STANCOR) (2-7.5 HP)	DS-A01-114
3″	GR-SEW-3	GR-SEW-3	SEW (3 HP)	DS-A01-115
3″	DUTY DN80	206166	A2/V2 (5-13 HP) A4/V4 (1.5-4 HP)	DS-C01-009
4″	SR100-ANSI	204404	J/JH/S/SK/SV (BJM) (7.5-10 HP)	DS-C01-013
4″	DUTY DN100	206167	A4/V4 (5-10 HP)	DS-C01-009
6″	SR150-ANSI	201582	SK (15-20 HP)	DS-C01-013
8″	SR200-ANSI	204166	KZE	DS-C01-015

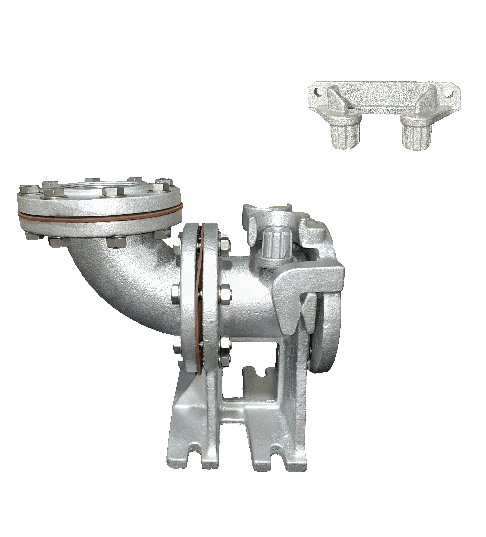

Guide Rail Base, Upper Guide Rail Bracket, and Pump Bracket. Assembly does not include guide rail pipe.

Size	Model	Part Number	Pump Models	Dimensional Document Number
2″	SRX50SS-JX	200505	JX (1 HP) JXH (2-5 HP)	DS-C01-014
2″	SRX50SS-1	201605	SKX/SX (1 HP)	DS-C01-014
2″	GR TTS-05/S-316	GR TTS-05/S-316	SS (0.5-1 HP)	DS-A01-113
3″	SRX80SS-JX	205166	JX/XP-JX/XP-JXH (2-5 HP)	DS-C01-013
3″	SRX80SS-ANSI	204405	SKX/SX (2-5 HP)	DS-C01-013
3″	GR-300/S-316	GR-300/S-316	SS (2-7.5 HP)	DS-A01-114
4″	SRX100SS-ANSI	204406	SKX/SX/JXH (7.5-10 HP) JX (7.5-30 HP)	DS-C01-013
6″	SRX150SS-ANSI	201621	SKX (15-20 HP)	DS-C01-013

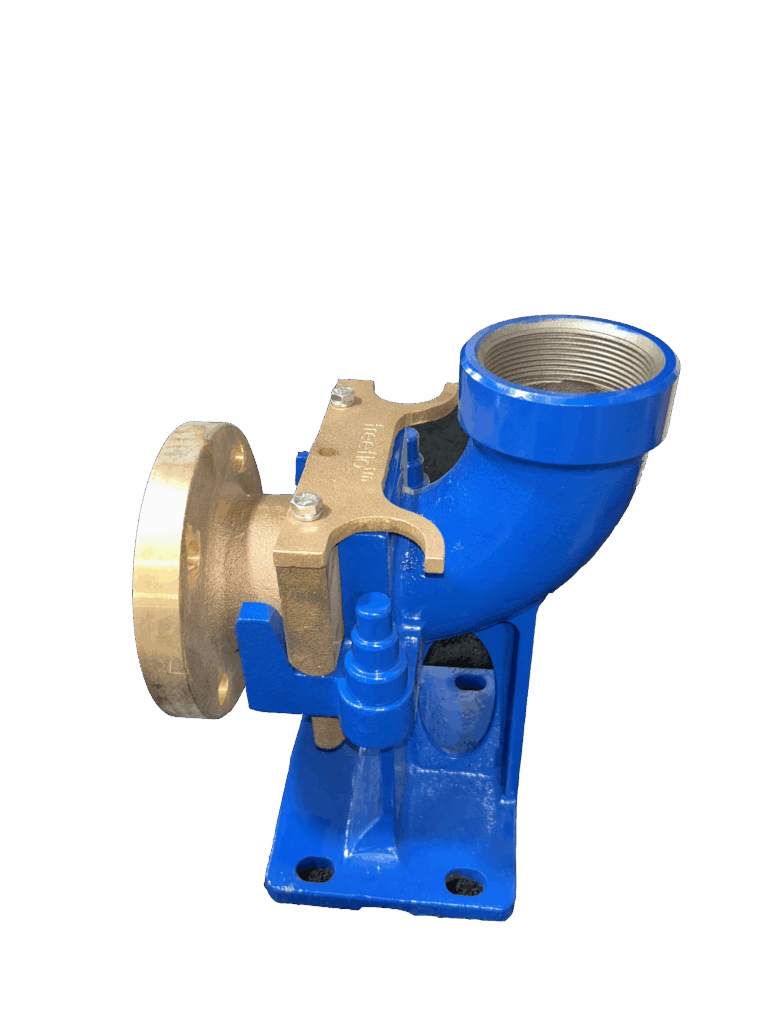

Guide Rail Base, Upper Guide Rail Bracket, and Pump Bracket. Assembly does not include guide rail pipe.

Size	Model	Part Number	Pump Models	Dimensional Document Number
3″	SR-XP-3	204400	XP-SK/XP-SKX (2-5 HP)	DS-C01-007
4″	SR-XP-4	204401	XP-SK/XP-SKX (7-5-10 HP)	DS-C01-007
6″	SR-XP-6	204402	XP-SK/XP-SKX (15-20 HP)	DS-C01-016

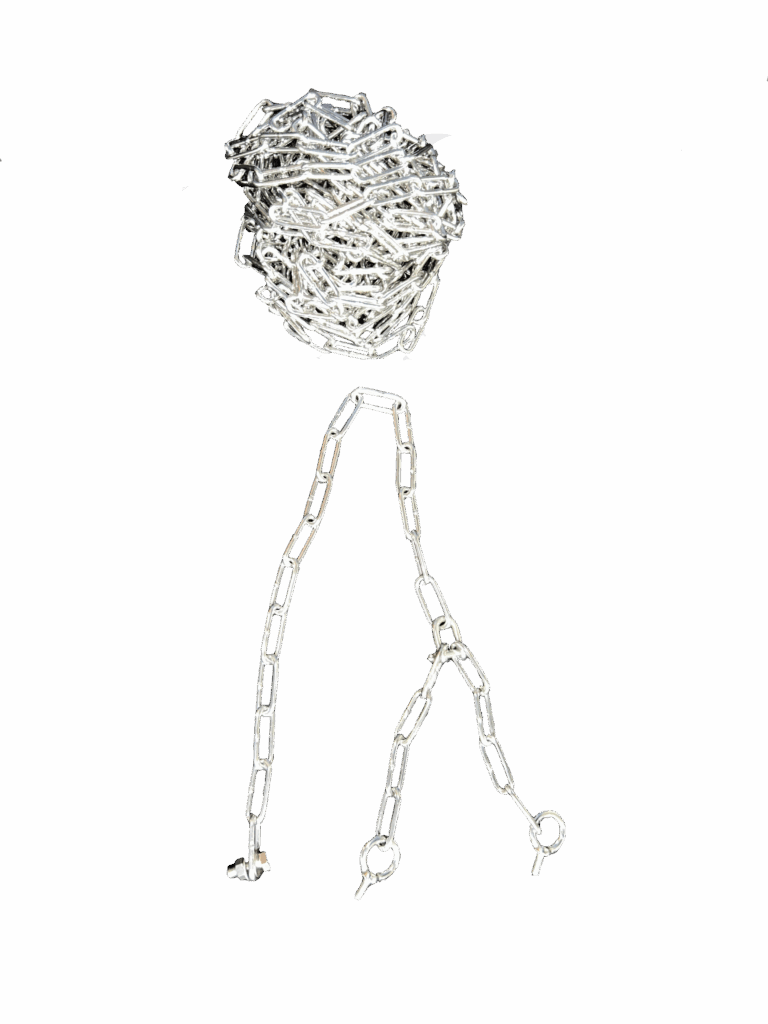

Part Number	Model	Size	Material
202511	SC/SV/SE/SS (0.5-3 HP) SK/SKX/SV/SX (1-2 HP)	16′	304 SS
202512	SK/SKG/SKX/SV/SX (3-5 HP)	32′	304 SS
205688	SC/SV (5-7.5 HP)	32′	304 SS
202513	J/JH/JX/JXH/S/SV/SX (7.5-10 HP)	32′	304 SS
202514	SK/SKX (7.5-20 HP)	32′	304 SS
205760	XP-JX/XP-JXH/XP-SK/XP-SKX (2-3 HP)	50′	316 SS
205762	XP-JX/XP-JXH (5 HP) XP-SK/XP-SKX (5-10 HP)	50′	316 SS
205764	XP-SK/XP-SKX (15-20 HP)	50′	316 SS

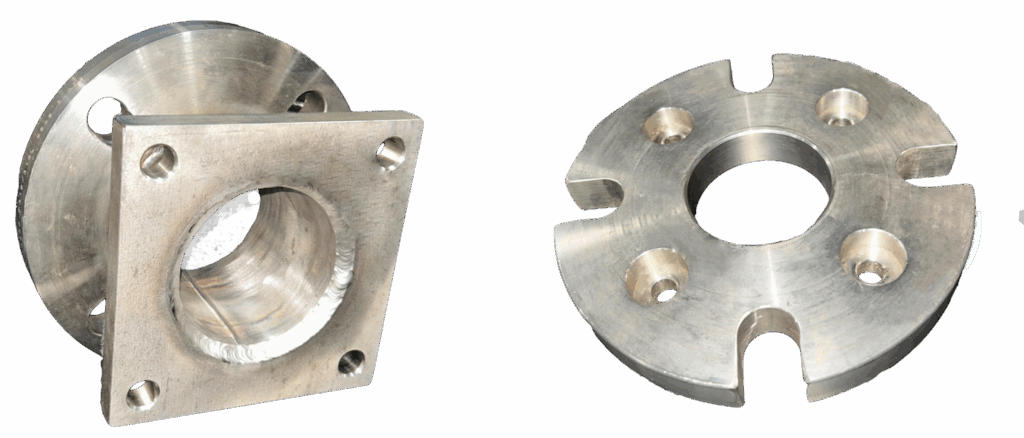

Connection Type	Material	Part Number	Nominal Size	Size A	Size B
Flat	Cast Iron	202598	4″ to 4″	DIN-100-PN25 ANSI-4″-150 lbs.	DIN-100-PN6
Flat	Cast Iron	203827	13.25″ to 3″	DIN-32-PN16	ANSI-3″-150 lbs.
Flat	Cast Iron	202601	3″ to 4″	DIN-80-PN6	DIN-100-PN16
Flat	Cast Iron	202603	4″ to 6″	DIN-100-PN25 ANSI-4″-150 lbs.	ANSI-6″-150 lbs.
Flat	Cast Iron	206264	3″ to 3″	ANSI-3″-150 lbs.	DIN-80-PN16
Flat	Cast Iron	206265	4″ to 4″	ANSI-4″-150 lbs.	DIN-100-PN16
Flat	316 SS	202599	4″ to 4″	DIN-100-PN25 ANSI-4″-150 lbs.	DIN-100-PN6
Flat	316 SS	202602	3″ to 4″	DIN-80-PN6	DIN-100-PN16
Spool	Cast Iron	201574	3″ to 4″	DIN-80-PN6	DIN-100-PN6
Spool	Cast Iron	201581	4″ to 6″	DIN-100-PN6	DIN-150-PN16
Spool	Cast Iron	200331	2.5″ to 3″ 3″ to 3″	ANSI-3″-150 lbs. ANSI-2.5″-150 lbs.	DIN-80-PN6
Spool	Cast Iron	912-001-1-CI	3″ to 3″	ANSI-3″-150 lbs.	DIN-80-PN16
Spool	Cast Iron	912-002-1-CI	4″ to 4″	ANSI-4″-150 lbs.	DIN-100-PN16
Spool	Cast Iron	912-003-1-CI	2.5″ to 2.5″ 2.5″ to 3″	DIN-65-PN6	ANSI-3″-150 lbs. ANSI-2.5″-150 lbs.
Spool	316 SS	204075	2.5″ to 3″ 3″ to 3″	ANSI-3″-150 lbs. ANSI-2.5″-150 lbs.	DIN-80-PN6
Spool	316 SS	201614	3″ to 4″	DIN-80-PN6	DIN-100-PN6
Spool	316 SS	201620	4″ to 6″	DIN-100-PN6	DIN-150-PN16
Spool	Carbon Steel	912-004-1-CS	4″ to 4″	ANSI-4″-150 lbs.	DIN-100-PN16
Spool	Carbon Steel	912-005-1-CS	3″ to 3″	ANSI-3″-150 lbs.	DIN-80-PN16

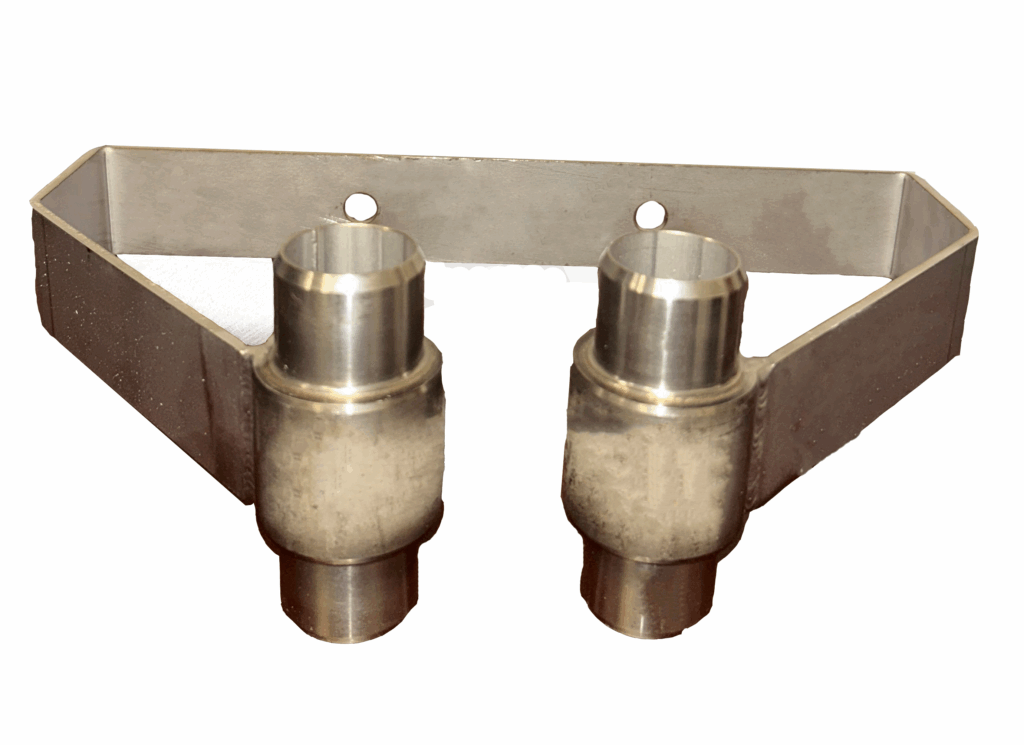

Recommended installation every 8 ft of rail pipe. All Intermediate Guiderail Brackets are 304 SS. All Slide Rail Pipes: Schedule 40.
