High Head, Corrosion Resistant, Dewatering Pump
- High head, Corrosion-Resistant Dewatering Pump
- Cast 316 stainless steel (ASTM 48), no welds
- Rated A or B for corrosive resistance
- FKM Elastomers (EPDM or Buna Optional)
- Class F or H motor insulation
- Double mechanical seal design with separate lip seal
- Seal Minder® moisture detection system (optional)
- Built in thermal protection
- 316 stainless steel motor housing
- Side discharge
- Solids capability up to 3/8”
- 2HP – 10HP
- 2 pole motor

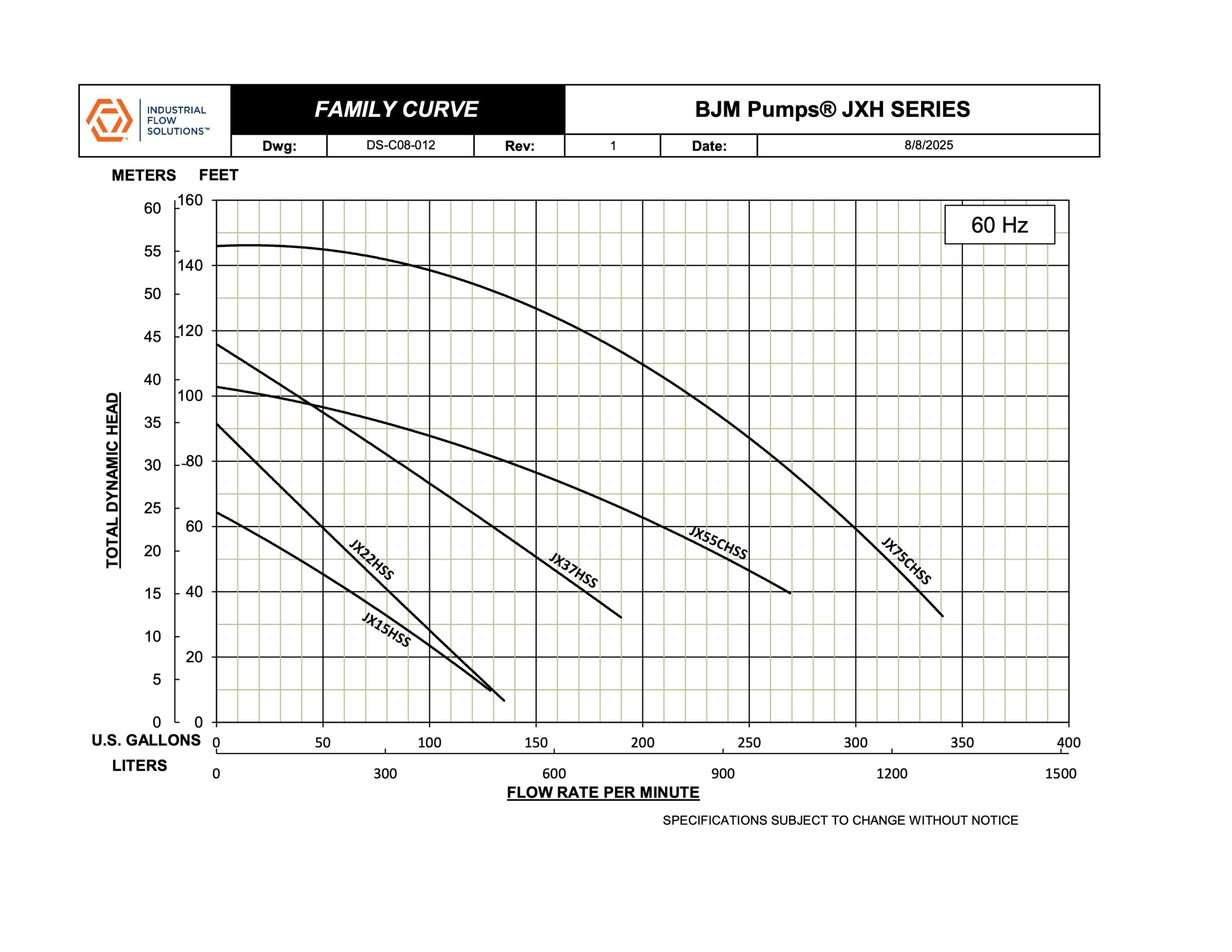

| Model | Datasheet & Curves | Motor Rating | Voltage | Phase Frequency | Full Load Amps | Discharge | Weight | Max Head | Max Flow | Max Solids |
|---|---|---|---|---|---|---|---|---|---|---|
| JX15HSS |
Download DS-C08-009-JX15HSS-Technical-Datasheet-Rev-1.pdf
| 2HP (1.5kW) | 208/230/460/575 | 3ph-60Hz | 6.3/6/3/2.3 | 2" NPT-M | 69lbs (31.3kg) | 64ft (19.5m) | 128GPM (485LPM) | 0.19in (5mm) |
| JX22HSS |
Download DS-C08-010-JX22HSS-Technical-Datasheet-Rev-1.pdf
| 3HP (2.2kW) | 208/230/460/575 | 3ph-60Hz | 9.45/9/4.5/3.2 | 2" NPT-M | 94lbs (42.6kg) | 92ft (28m) | 135GPM (511LPM) | 0.37in (9mm) |
| JX37HSS |
Download DS-C08-011-JX37HSS-Technical-Datasheet-Rev-1.pdf
| 5.0HP (3.7kW) | 208/230/460/575 | 3ph-60Hz | 14.7/14/7/5.5 | 2" NPT-M | 108kg (238lbs) | 116ft (35.4m) | 190GPM (719LPM) | 0.37in (9mm) |
| JX55CHSS |
Download DS-C08-008-JX55CHSS-Technical-Datasheet-Rev-1.pdf
| 7.5HP (5.6kW) | 230/460/575 | 3ph-60Hz | 21/10.5/7.6 | 4" Flange W/ 3" NPT-F Discharge | 227lbs (103kg) | 103ft (31.4m) | 269GPM (1018LPM) | 0.37in (9mm) |
| JX75CHSS |
Download DS-C08-007-JX75CHSS-Technical-Datasheet-Rev-1.pdf
| 10HP (7.5kW) | 460/575 | 3ph-60Hz | 15/10.5 | 4" NPT-F | 252lbs (114.3kg) | 146ft (44.5m) | 341GPM (1291LPM) | 0.37in (9mm) |
