SX Series BJM Pump

Corrosion Resistant, Solids Handling Non-Clog Pump

  • Corrosion-resistant, solids-handling non-clog pump
  • Maximum solids 2.5”
  • Non-clog impellers
  • Cast 316 stainless steel (ASTM 48), no welds
  • Oil-lubricated, double mechanical seals
  • Seal Minder® Moisture detection system
  • FKM Elastomers (EPDM or Buna Optional)
  • Oil-resistant standard power cable
  • Built-in thermal protection
  • Class F or H insulation
  • 2 pole motors
  • 1HP -10HP
Let Us Help Design Your System

Literature

Operation Manual
Dimensions
Parts Lists/Exploded Views
Specifications

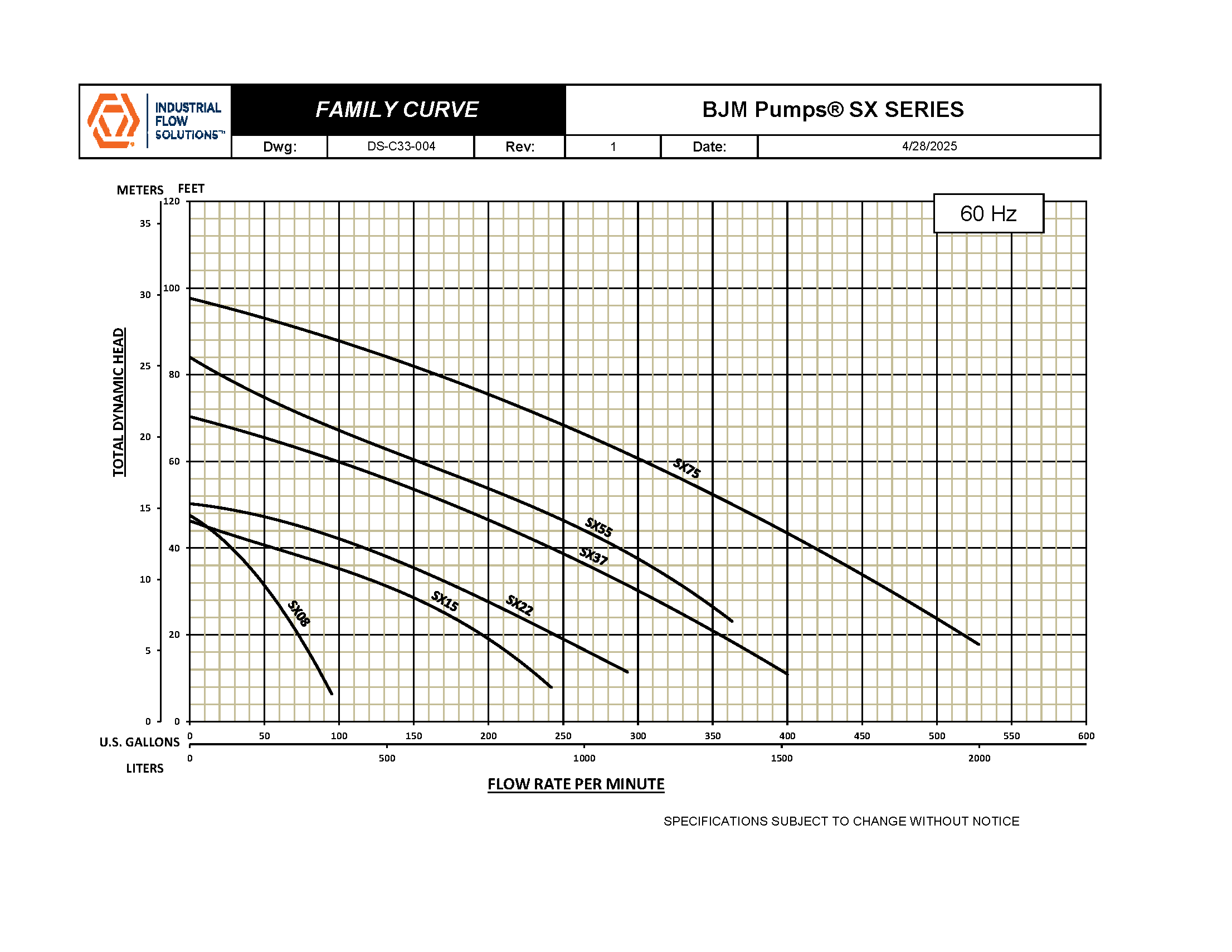

ModelDatasheet & CurvesMotor RatingVoltagePhase FrequencyFull Load AmpsDischargeWeightMax HeadMax FlowMax Solids
SX08CSS Download IFS-BJM-DatasheetCurve-DS-C33-010-SX08CSS-Technical-Datasheet-Rev-1111625.pdf 1HP (0.7kW)208/230/460/5753ph-60Hz3.15/3/1.5/1.22" NPT-M69lbs (31.3kg)58ft (17.7m)87GPM (329LPM)2in (51mm)
SX15CSS Download IFS-BJM-DatasheetCurve-DS-C33-011-SX15CSS-Technical-Datasheet-Rev-1111625.pdf 2HP (1.5kW)208/230/460/5753ph-60Hz6.3/6/3/2.33" NPT-M94lbs (42.6kg)52ft (15.8m)226GPM (856LPM)1.6in (41mm)
SX22CSS Download IFS-BJM-DatasheetCurve-DS-C33-012-SX22CSS-Technical-Datasheet-Rev-1111625.pdf 3HP (2.2kW)208/230/460/5753ph-60Hz9.45/9/4.5/3.23" NPT-M125lbs (56.7kg)58ft (17.7m)260GPM (984LPM)1.6in (41mm)
SX37CSS Download IFS-BJM-DatasheetCurve-DS-C33-013-SX37CSS-Technical-Datasheet-Rev-1111625.pdf 5HP (3.7kW)208/230/460/5753ph-60Hz14.7/14/7/5.53" Flange w/ 4" NPT-F discharge (3" NPT-M optional)136lbs (61.7kg)74ft (22.6m)336GPM (1272LPM)2.5in (64mm)
SX55CSS Download IFS-BJM-DatasheetCurve-DS-C33-003-SX55CSS-Technical-Datasheet-Rev-2111625.pdf 7.5HP (5.6kW)230/460/5753ph-60Hz21/10.5/7.64" NPT-F252lbs (114.3kg)85ft (25.9m)363GPM (1374LPM)2.5in (64mm)
SX75CSS Download IFS-BJM-DatasheetCurve-DS-C33-001-SX75CSS-Technical-Datasheet-Rev-2111625.pdf 10HP (7.5kW)460/5753ph-60Hz15/10.54" NPT-F281lbs (127.5kg)106ft (32.3m)507GPM (1919LPM)2.5in (64mm)
