High Temperature, Corrosion Resistant Solids Handling Non-Clog Pump
- Fahrenheit® High Temperature, corrosion-resistant, solids handling non-clog pump
- HIGH TEMPERATURE up to 200°F (93°C)
- Non-clog impellers
- Maximum solids 2.5”
- FKM Elastomers (EPDM or Buna Optional)
- Cast 316 stainless steel (ASTM 48), no welds
- Oil-resistant standard power cable
- Oil-lubricated, double mechanical seals
- Seal Minder® Moisture detection system
- Built-in thermal protection
- Class F motor insulation
- 2 pole motors
- 1 HP – 10 HP

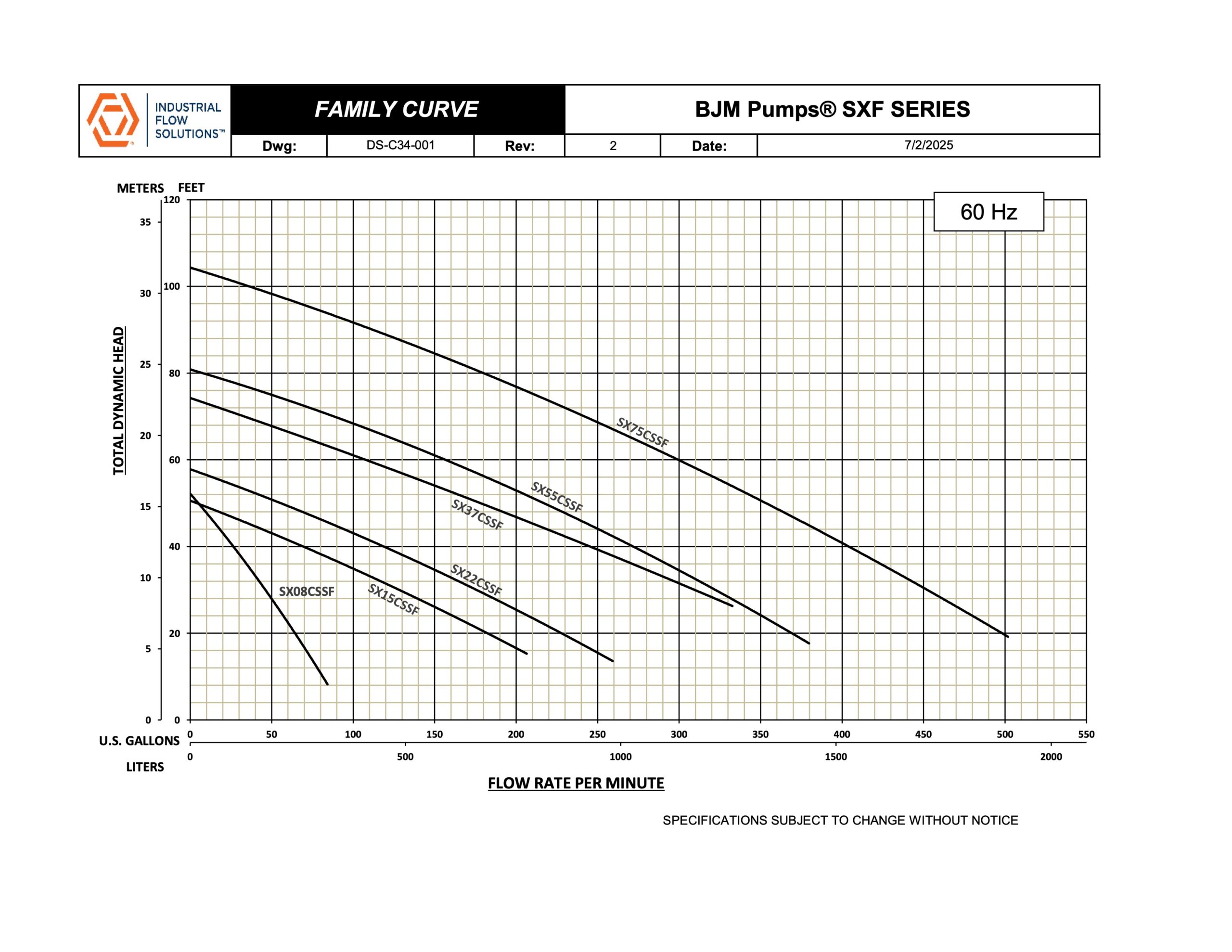

| Model | Datasheet & Curves | Motor Rating | Voltage | Phase Frequency | Full Load Amps | Discharge | Weight | Max Head | Max Flow | Max Solids |
|---|---|---|---|---|---|---|---|---|---|---|
| SX08CSSF |
Download IFS-BJM-DatasheetCurve-DS-C34-010-SX08CSSF-Technical-Datasheet-Rev-1111725.pdf
| 1HP (0.7kW) | 208/230/460/575 | 3ph-60Hz | 3.5/3.2/1.6/1.3 | 2" NPT-M | 69lbs (31.3kg) | 53ft (16.2m) | 85GPM (322LPM) | 2.5in (64mm) |
| SX15CSSF |
Download IFS-BJM-DatasheetCurve-DS-C34-011-SX15CSSF-Technical-Datasheet-Rev-1111725.pdf
| 2HP (1.5kW) | 208/230/460/575 | 3ph-60Hz | 6.3/6/3/2.3 | 3" NPT-M | 94lbs (42.6kg) | 51ft (15.5m) | 207GPM (784LPM) | 1.6in (41mm) |
| SX22CSSF |
Download IFS-BJM-DatasheetCurve-DS-C34-012-SX22CSSF-Technical-Datasheet-Rev-1111725.pdf
| 3HP (2.2kW) | 208/230/460/575 | 3ph-60Hz | 9.45/9/4.5/3.2 | 3" NPT-M | 132lbs (59.9kg) | 58ft (17.7m) | 260GPM (984LPM) | 1.6in (41mm) |
| SX37CSSF |
Download IFS-BJM-DatasheetCurve-DS-C34-009-SX37CSSF-Technical-Datasheet-Rev-1111725.pdf
| 5HP (3.7kW) | 208/230/460/575 | 3ph-60Hz | 14.7/14/7/5.5 | 3" FLANGE W/ 4" NPT-F DISCHARGE | 136lbs (61.7kg) | 75ft (22.9m) | 333GPM (1261LPM) | 1.6in (41mm) |
| SX55CSSF |
Download IFS-BJM-DatasheetCurve-DS-C34-004-SX55CSSF-Technical-Datasheet-Rev-2111725.pdf
| 7.5HP (5.6kW) | 230/460/575 | 3ph-60Hz | 21/10.5/7.6 | 4" NPT-F | 252lbs (114.3kg) | 81ft (24.7m) | 380GPM (1438LPM) | 2.5in (64mm) |
| SX75CSSF |
Download IFS-BJM-DatasheetCurve-DS-C34-013-SX75CSSF-Technical-Datasheet-Rev-1111725.pdf
| 10HP (7.5kW) | 460/575 | 3ph-60Hz | 15/10.5 | 4" NPT-F | 281lbs (127.5kg) | 105ft (32m) | 502GPM (1900LPM) | 2.5in (64mm) |
